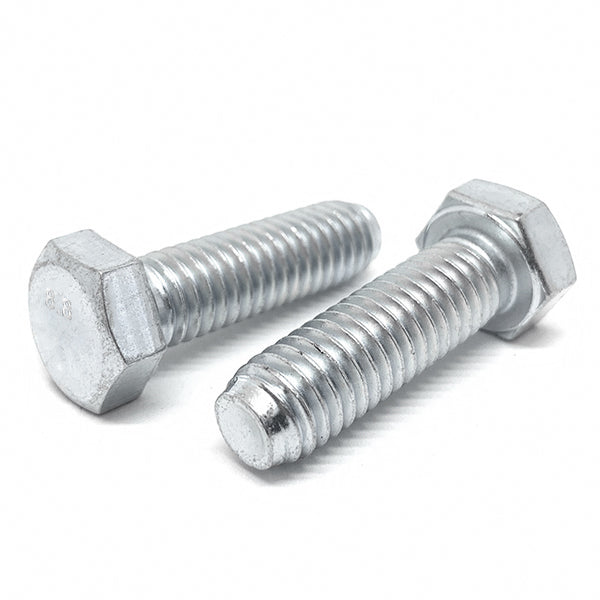

M10-1.25x40 Class 8.8 Hex Cap Screws Zinc Clear

Product Description

Part Number: M10F40HCS88Z
Diameter/Pitch: M10-1.25
Length Under Head: 40MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 17MM

BoltsandNuts.com

M10-1.25x40 Class 8.8 Hex Cap Screws Zinc Clear

SKU: M10F40HCS88Z

Product Description

Part Number: M10F40HCS88Z
Diameter/Pitch: M10-1.25
Length Under Head: 40MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 17MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.40/pc

Popular

30

$1.05/pc

60

$0.89/pc

150

$0.71/pc

Best Value

550

$0.53/pc

$1.40

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1.25
Grade Material	Class 8.8
Partial Full Threads	Full
Wrench Size	17MM
Head Height	6.4 mm nom
Clamp Load	26.6 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Length	40 mm
Inch Metric	Metric

Length Under Head	40 mm
Finish	Zinc Clear
Coarse Fine Threads	Fine
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	61.2 sq mm
Torque Dry	53 Nm (39 ft-lb)
Nominal Size	M10

Grade	Class 8.8
Material	Medium carbon steel, quenched and tempered
Thread Class	6g
Width Across Corners	18.5 mm max
Proof Load	35.5 kN (7,980 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	40 Nm (29 ft-lb)
Thread Length	26 mm ref
