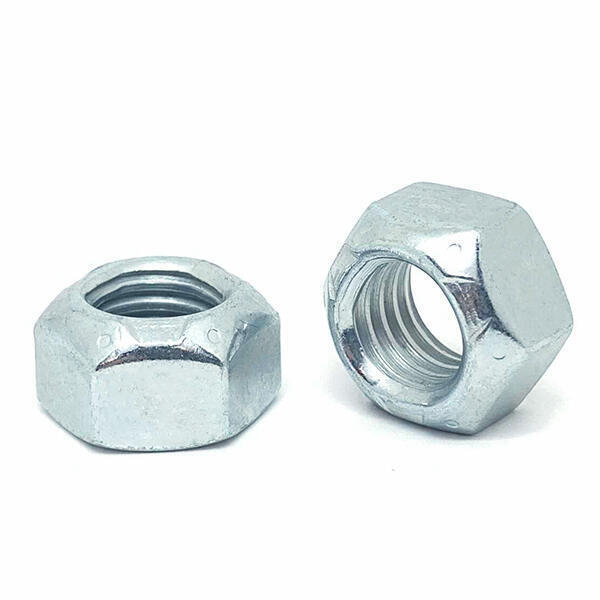

M10-1.25 Class 10 Hex Top Lock Nuts Fine Thread Zinc

Product Description

Part Number: M10FPTN10Z
Diameter/Pitch: M10-1.5
Grade: Class 10
Finish: Zinc Clear
Thread Series: Metric coarse
Wrench Size: 17MM

BoltsandNuts.com

M10-1.25 Class 10 Hex Top Lock Nuts Fine Thread Zinc

SKU: M10FPTN10Z

Product Description

Part Number: M10FPTN10Z
Diameter/Pitch: M10-1.5
Grade: Class 10
Finish: Zinc Clear
Thread Series: Metric coarse
Wrench Size: 17MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.53/pc

Popular

50

$0.40/pc

100

$0.34/pc

250

$0.27/pc

Best Value

1200

$0.20/pc

$0.53

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	M10-1.25
Finish	Zinc Clear
Thread Series	Metric fine
Lock Type	Top Lock Nuts
Max Temperature	Rated to 230°C (all-metal)

Grade	Class 10
Head Type	Hex
Thread Class	6H
Height	8.4 mm nom

Material	Carbon steel, heat treated
Wrench Size	17MM
Specifications Met	ISO 898-2 Class 10
Locking Type	All-metal prevailing torque (distorted thread)

Technical Drawing

Not to scale · ISO 7042 / DIN 980 · See table for exact dimensions

Technical Dimensions

Width Across Flats	17 mm
Nut Height	8.4 mm nom
Thread Size	M10-1.25
Thread Class	6H
Locking Type	All-metal prevailing torque (distorted thread)
Max Temperature	Rated to 230°C (all-metal)
Material	Carbon steel, heat treated

All-metal prevailing torque nut with a distorted top thread that grips the bolt, resisting vibration loosening without a nylon insert. Suitable for elevated temperatures where nylon would fail.

Dimensions conform to ISO 7042 / DIN 980 and may vary within specified manufacturing tolerances.
