M10 Class 10 Internal Tooth Lock Washers Zinc Clear

Product Description

Part Number: M10ITLW10Z
Diameter: M10
Grade: Class 10
Finish: Zinc

BoltsandNuts.com

M10 Class 10 Internal Tooth Lock Washers Zinc Clear

SKU: M10ITLW10Z

Product Description

Part Number: M10ITLW10Z
Diameter: M10
Grade: Class 10
Finish: Zinc

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.13/pc

Popular

200

$0.0973/pc

500

$0.0827/pc

2500

$0.0662/pc

Best Value

10000

$0.0496/pc

$0.13

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Grade	Carbon Steel
Pattern	Internal Tooth (DIN 6798)
Outside Diameter	18 mm
System	Metric

Material	Hardened carbon steel
Diameter	M10
Inside Diameter	10.5 mm

Finish	Zinc Clear
Thickness	0.9 mm
Locking Type	Serrated tooth bite

Technical Drawing

Not to scale · DIN 6797 / 6798 · See table for exact dimensions

Technical Dimensions

Outside Diameter	18 mm
Inside Diameter	10.5 mm
Thickness	0.9 mm
Fits Bolt Size	M10
Pattern	Internal Tooth (DIN 6798)
Locking Action	Serrated tooth bite
Material	Hardened carbon steel

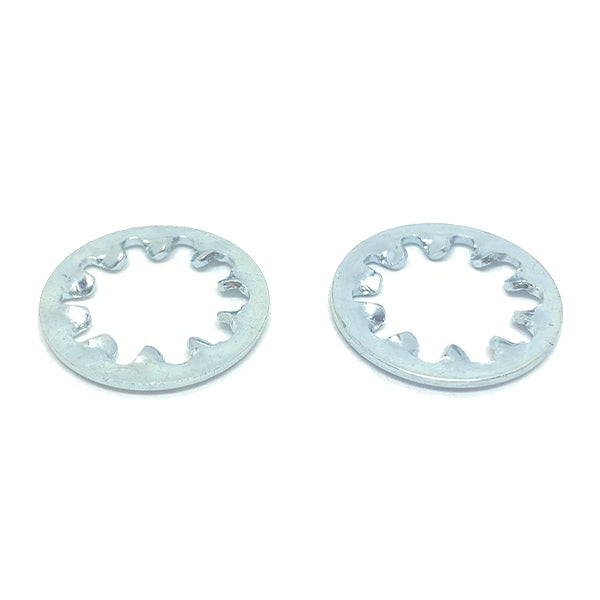

Internal tooth lock washer: twisted teeth around the inside edge bite the fastener head and the bearing surface to resist turning. The teeth sit hidden under the head for a neat appearance.

Dimensions conform to DIN 6797 / 6798 and may vary within specified manufacturing tolerances.
