Product Description
Part Number: M10FNHF8Z
Diameter/Pitch: M10-1.25
Grade: Class 8
Finish: Zinc Clear
Thread Series: Metric fine
Wrench Size: 15MM
BoltsandNuts.com

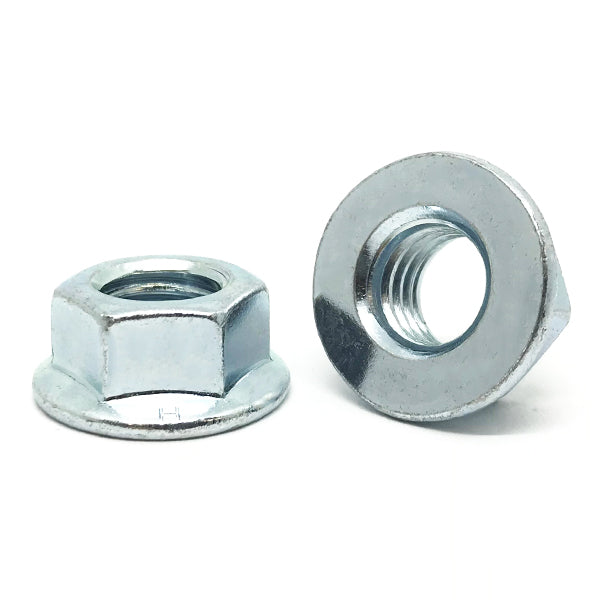

M10-1.25 Class 8 Hex Flange Nuts Zinc Clear
Product Description
Part Number: M10FNHF8Z
Diameter/Pitch: M10-1.25
Grade: Class 8
Finish: Zinc Clear
Thread Series: Metric fine
Wrench Size: 15MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.54/pc
Popular
50
$0.40/pc
100
$0.34/pc
250
$0.28/pc
Best Value
1000
$0.21/pc
$0.54
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | M10-1.25 |
| Finish | Zinc Clear |
| Thread Series | Metric fine |
| Grade | Class 8 |
| Head Type | Hex Flange |
| Thread Class | 6H |
| Material | Medium carbon steel, quenched and tempered |
| Wrench Size | 15MM |
| Specifications Met | ISO 4161 / DIN 6923, ISO 898-2 Class 8 |
Technical Drawing
Not to scale · ISO 4161 / DIN 6923 · See table for exact dimensions
Technical Dimensions
| Wrench Size | 15MM |
| Thread Size | M10-1.25 |
| Thread Class | 6H |
| Flange Style | Smooth Flange Nuts |
| Head Type | Hex Flange |
| Material | Medium carbon steel, quenched and tempered |
Hex nut with an integral flange that spreads load like a built-in washer, often removing the need for a separate washer.
Dimensions conform to ISO 4161 / DIN 6923 and may vary within specified manufacturing tolerances.
