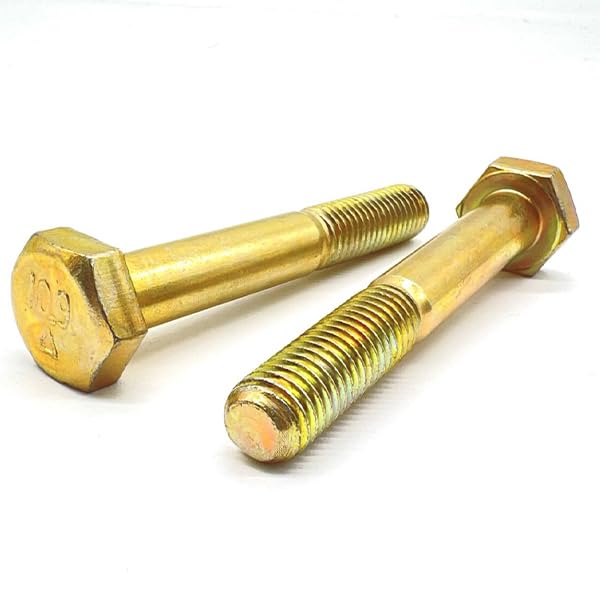

M10-1.50x75 Class 10.9 Hex Cap Screws Zinc Yellow

Product Description

Part Number: M10C75HCS10Y
Diameter/Pitch: M10-1.5
Grade: Class 10.9
Length Under Head: 75MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 17MM
Click Here for Tech Drawing

BoltsandNuts.com

M10-1.50x75 Class 10.9 Hex Cap Screws Zinc Yellow

SKU: M10C75HCS10Y

Product Description

Part Number: M10C75HCS10Y
Diameter/Pitch: M10-1.5
Grade: Class 10.9
Length Under Head: 75MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 17MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$2.51/pc

Popular

10

$1.88/pc

20

$1.59/pc

50

$1.27/pc

Best Value

300

$0.95/pc

$2.51

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1.5
Grade Material	Class 10.9
Thread Class	6g
Head Height	6.4 mm nom
Clamp Load	36.1 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Thread Length	26 mm ref

Length Under Head	75 mm
Finish	Zinc Yellow
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	58.0 sq mm
Torque Dry	72 Nm (53 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Partial Full Threads	Partial
Width Across Corners	18.5 mm max
Proof Load	48.1 kN (10,820 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	54 Nm (40 ft-lb)
