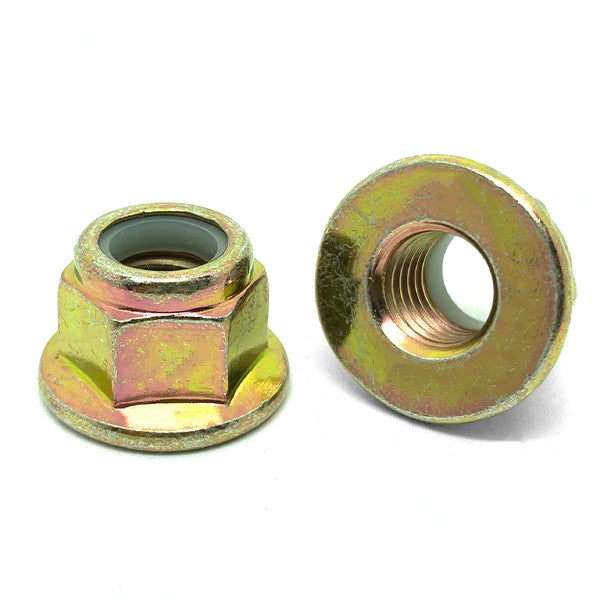

M10-1.5 Class 10 Nylon Insert Hex Flange Lock Nuts Zinc Yellow

Product Description

Part Number: M10CNFN10Y
Diameter/Pitch: M10-1.5
Grade: Class 10
Finish: Zinc Yellow
Thread Series: Metric coarse
Wrench Size: 15MM

BoltsandNuts.com

M10-1.5 Class 10 Nylon Insert Hex Flange Lock Nuts Zinc Yellow

SKU: M10CNFN10Y

Product Description

Part Number: M10CNFN10Y
Diameter/Pitch: M10-1.5
Grade: Class 10
Finish: Zinc Yellow
Thread Series: Metric coarse
Wrench Size: 15MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.83/pc

Popular

50

$0.62/pc

100

$0.53/pc

250

$0.42/pc

Best Value

1000

$0.32/pc

$0.83

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	M10-1.5
Finish	Zinc Yellow
Thread Series	Metric coarse
Proof Load (min)	60.3 kN (13,558 lbf)
Locking Type	Nylon Insert (Prevailing Torque)

Grade	Class 10
Head Type	Hex Flange
Head Marking	Class 10 marking
Specifications Met	ISO 4161 / DIN 6923, ISO 898-2 Class 10
Max Temperature	120°C (nylon insert limit)

Material	Carbon steel, heat treated
Wrench Size	15MM
Thread Class	6H
Height	8.4 mm nom

Technical Drawing

Not to scale · ISO 7043 / DIN 6926 · See table for exact dimensions

Technical Dimensions

Wrench Size	15MM
Thread Size	M10-1.5
Thread Class	6H
Flange Style	Nylon Insert Flange Nuts
Head Type	Hex Flange
Material	Carbon steel, heat treated

Hex flange nut with a nylon insert ring at the top that grips the bolt thread to resist vibration loosening, and an integral flange that spreads load like a built-in washer. Not for use above the insert temperature limit.

Dimensions conform to ISO 7043 / DIN 6926 and may vary within specified manufacturing tolerances.
