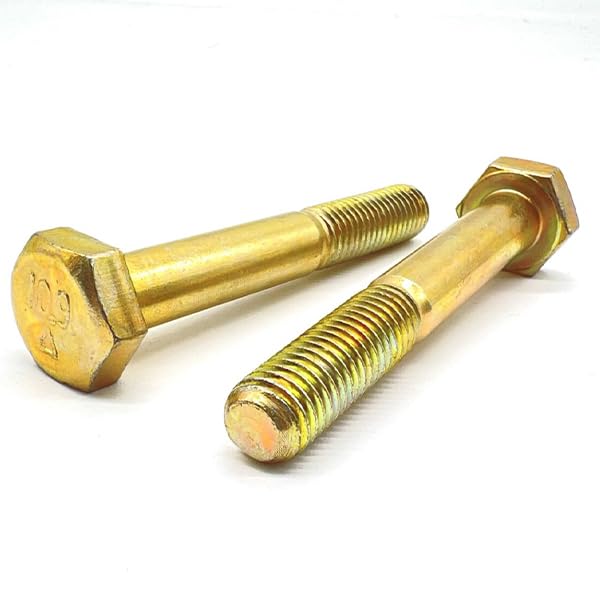

M8-1.25x80 Class 10.9 Hex Cap Screws Zinc Yellow

Product Description

Part Number: M8C80HCS10Y
Diameter/Pitch: M8-1.25
Grade: Class 10.9
Length Under Head: 80MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 13MM
Click Here for Tech Drawing

BoltsandNuts.com

M8-1.25x80 Class 10.9 Hex Cap Screws Zinc Yellow

SKU: M8C80HCS10Y

Product Description

Part Number: M8C80HCS10Y
Diameter/Pitch: M8-1.25
Grade: Class 10.9
Length Under Head: 80MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 13MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.62/pc

Popular

15

$1.21/pc

30

$1.03/pc

75

$0.82/pc

Best Value

500

$0.62/pc

$1.62

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M8-1.25
Grade Material	Class 10.9
Thread Class	6g
Head Height	5.3 mm nom
Clamp Load	22.8 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Thread Length	22 mm ref

Length Under Head	80 mm
Finish	Zinc Yellow
Width Across Flats	13 mm
Major Diameter	8 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	36.6 sq mm
Torque Dry	36 Nm (27 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Partial Full Threads	Partial
Width Across Corners	15.0 mm max
Proof Load	30.4 kN (6,831 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	27 Nm (20 ft-lb)
