Product Description
Part Number: M8CPTN10Y
Diameter/Pitch: M8-1.25
Grade: Class 10
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Wrench Size: 13MM
Click Here for Tech Drawing
BoltsandNuts.com

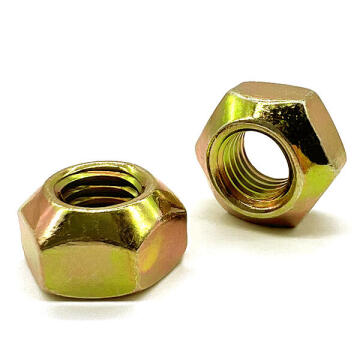

M8-1.25 Class 10 Hex Top Lock Nuts Coarse Thread Zinc Yellow
Product Description
Part Number: M8CPTN10Y
Diameter/Pitch: M8-1.25
Grade: Class 10
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Wrench Size: 13MM
Click Here for Tech Drawing
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.33/pc
Popular
100
$0.24/pc
200
$0.20/pc
500
$0.16/pc
Best Value
2000
$0.12/pc
$0.33
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M8-1.25 |
| Finish | Zinc Yellow |
| Thread Class | 6H |
| Major Diameter | 8 mm |
| Head Type | Hex |
| Locking Type | All-metal prevailing torque (distorted thread) |
| Grade | Class 10 |
| Material | Carbon steel, heat treated |
| Wrench Size | 13MM |
| Tensile Stress Area | 36.6 sq mm |
| Height | 6.8 mm nom |
| Inch Metric | Metric |
| Grade Material | Class 10 |
| Coarse Fine Threads | Coarse |
| Width Across Flats | 13 mm |
| Lock Type | Top Lock Nuts |
| Nominal Size | M8 |
| Max Temperature | Rated to 230°C (all-metal) |
