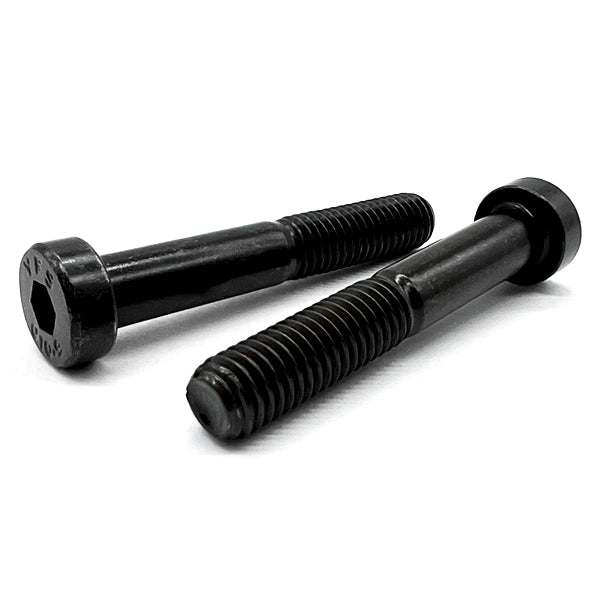

M8-1.25x40 Class 10.9 Low Socket Head Cap Screws Thermal Black Oxide

Product Description

Part Number: M8C40LSHCS10BO/D
Diameter/Pitch: M8-1.25
Length Under Head: 40MM
Grade: Class 10.9
Finish: Thermal Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Hex Key Size: 6MM

BoltsandNuts.com

M8-1.25x40 Class 10.9 Low Socket Head Cap Screws Thermal Black Oxide

SKU: M8C40LSHCS10BO/D

Product Description

Part Number: M8C40LSHCS10BO/D
Diameter/Pitch: M8-1.25
Length Under Head: 40MM
Grade: Class 10.9
Finish: Thermal Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Hex Key Size: 6MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.55/pc

Popular

65

$1.15/pc

130

$0.98/pc

325

$0.78/pc

Best Value

500

$0.59/pc

$1.55

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M8-1.25
Grade Material	Class 10.9
Partial Full Threads	Partial
Major Diameter	8 mm
Yield Strength	1,100 MPa
Hardness	39–44 HRC
Head Type	Socket Head Cap

Length Under Head	40 mm
Finish	Black Oxide
Thread Class	6g
Hex Key Size	6 mm
Proof Stress	970 MPa
Head Marking	"12.9" on head
Head Diameter	13 mm nom

Grade	Class 12.9
Material	Alloy steel, heat treated
Head Height	8 mm nom
Tensile Strength	1,220 MPa (176,946 psi)
Tensile Stress Area	36.6 sq mm
Drive	Hex Socket
Inch Metric	Metric
