B&N Pro Membership
Product Description
Part Number: M8SFW10PL
Diameter: M8
Grade: Class 10
Finish: Plain
Inside Diameter : 8.62MM
Outside Diameter: 16MM
Thickness : 1.6MM
BoltsandNuts.com

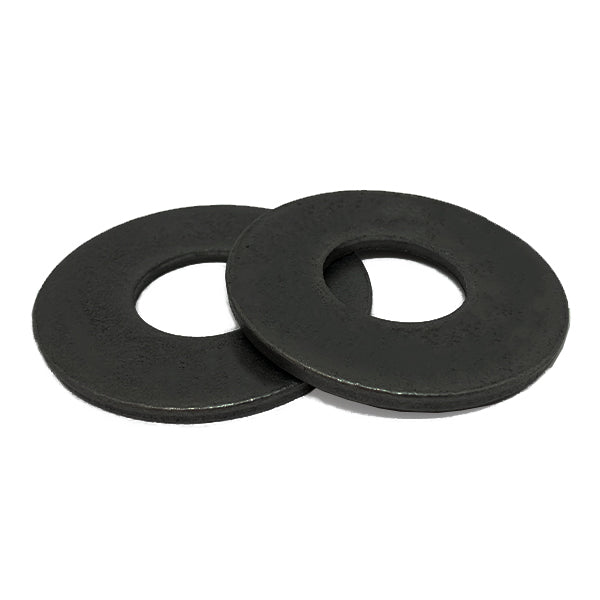

M8 Class 10 Hardened Flat Washers Plain
Product Description
Part Number: M8SFW10PL
Diameter: M8
Grade: Class 10
Finish: Plain
Inside Diameter : 8.62MM
Outside Diameter: 16MM
Thickness : 1.6MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.05/pc
Popular
150
$0.0369/pc
300
$0.0314/pc
750
$0.0251/pc
Best Value
10000
$0.0188/pc
$0.05
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Low Carbon |
| Specifications Met | ISO 7089 / DIN 125A |
| Thickness | 1.6 mm |
| System | Metric |
| Material | Low carbon steel |
| Pattern | DIN 125A / ISO 7089 |
| Outside Diameter | 16 mm |
| Finish | Plain |
| Diameter | M8 |
| Inside Diameter | 8.4 mm |
Technical Drawing
Not to scale · ISO 7089 / DIN 125A · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 16 mm |
| Inside Diameter | 8.4 mm |
| Thickness | 1.6 mm |
| Fits Bolt Size | M8 |
| Series | DIN 125A / ISO 7089 |
| Material | Low carbon steel |
Hardened flat washer that spreads bearing load and resists dishing under high-strength bolts. Place it under the part being turned.
Dimensions conform to ISO 7089 / DIN 125A and may vary within specified manufacturing tolerances.
