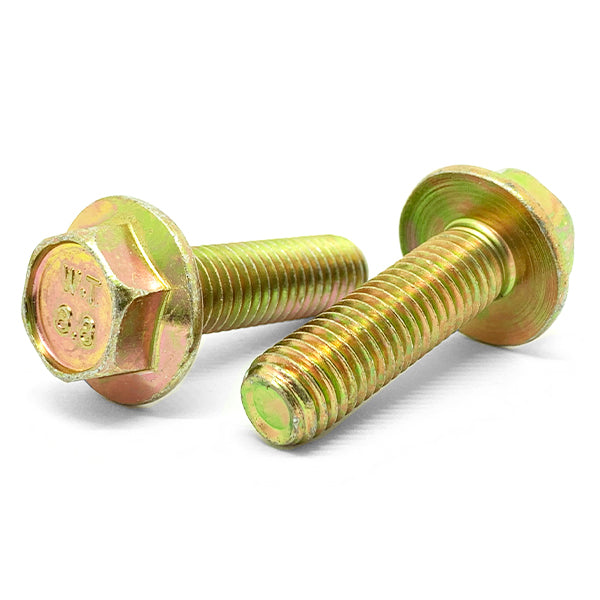

M8-1.25x30 Class 8.8 Hex Flange Bolts Zinc Yellow

Product Description

Part Number: M8C30BF88Y/D
Diameter/Pitch: M8-1.25
Grade: Class 8.8
Length Under Head: 30MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 13MM

BoltsandNuts.com

M8-1.25x30 Class 8.8 Hex Flange Bolts Zinc Yellow

SKU: M8C30BF88Y/D

Product Description

Part Number: M8C30BF88Y/D
Diameter/Pitch: M8-1.25
Grade: Class 8.8
Length Under Head: 30MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 13MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.88/pc

Popular

50

$0.65/pc

100

$0.55/pc

250

$0.44/pc

Best Value

900

$0.33/pc

$0.88

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M8-1.25
Grade Material	Class 8.8
Thread Class	6g
Head Height	5.3 mm nom
Clamp Load	15.9 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	30 mm
Finish	Zinc Yellow
Width Across Flats	13 mm
Major Diameter	8 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	36.6 sq mm
Torque Dry	25 Nm (19 ft-lb)
Thread Length	Fully threaded

Grade	Class 8.8
Partial Full Threads	Full
Width Across Corners	15.0 mm max
Proof Load	21.2 kN (4,773 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	19 Nm (14 ft-lb)
Inch Metric	Metric
