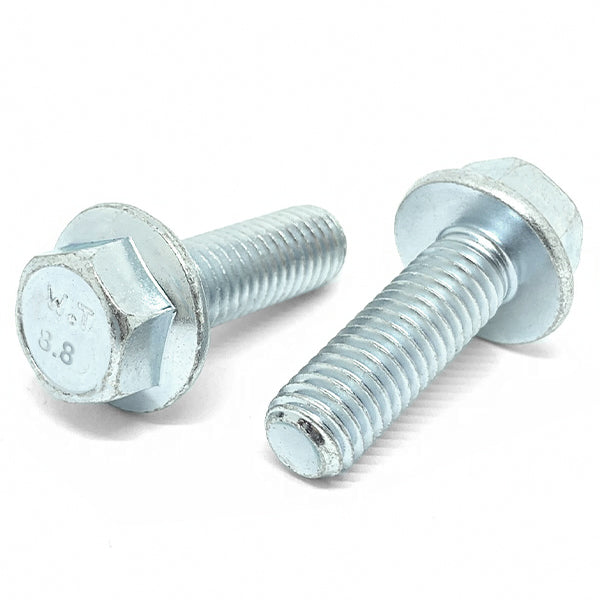

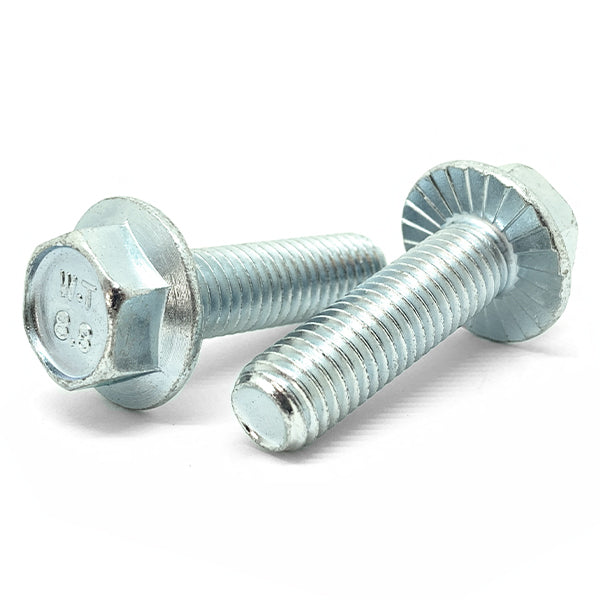

M8-1.25x25 Class 8.8 Hex Serrated Flange Bolts Zinc Clear

Product Description

Part Number: M8C25SFS88Z
Diameter/Pitch: M8-1.25
Grade: Class 8.8
Length Under Head: 25MM
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 13MM
Click Here for Tech Drawing

BoltsandNuts.com

M8-1.25x25 Class 8.8 Hex Serrated Flange Bolts Zinc Clear

SKU: M8C25SFS88Z

Product Description

Part Number: M8C25SFS88Z
Diameter/Pitch: M8-1.25
Grade: Class 8.8
Length Under Head: 25MM
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 13MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.71/pc

Popular

50

$0.52/pc

100

$0.45/pc

250

$0.36/pc

Best Value

1100

$0.27/pc

$0.71

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M8-1.25
Grade Material	Class 8.8
Partial Full Threads	Full
Wrench Size	13MM
Head Height	5.3 mm nom
Clamp Load	15.9 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Length	25 mm
Thread Length	Fully threaded

Length Under Head	25 mm
Finish	Zinc Clear
Coarse Fine Threads	Coarse
Width Across Flats	13 mm
Major Diameter	8 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	36.6 sq mm
Torque Dry	25 Nm (19 ft-lb)
Head Type	Hex Flange (Serrated)
Inch Metric	Metric

Grade	Class 8.8
Material	Medium carbon steel, quenched and tempered
Thread Class	6g
Width Across Corners	15.0 mm max
Proof Load	21.2 kN (4,773 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	19 Nm (14 ft-lb)
Nominal Size	M8
