Product Description
Part Number: M8CNFN8Z
Diameter/Pitch: M8-1.25
Grade: Class 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 13MM
BoltsandNuts.com

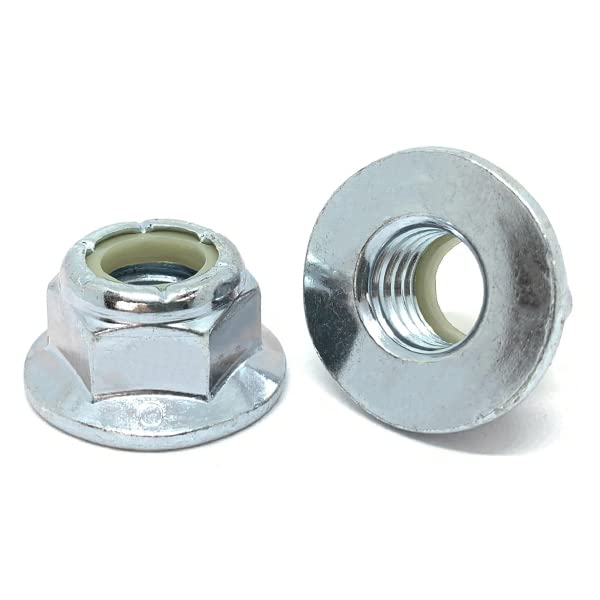

M8-1.25 Class 8 Nylon Insert Hex Flange Lock Nuts Zinc Clear
Product Description
Part Number: M8CNFN8Z
Diameter/Pitch: M8-1.25
Grade: Class 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 13MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.40/pc
Popular
100
$0.29/pc
200
$0.25/pc
500
$0.20/pc
Best Value
1500
$0.15/pc
$0.40
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M8-1.25 |
| Finish | Zinc Clear |
| Width Across Flats | 13 mm |
| Proof Stress | 800 MPa |
| Height | 6.8 mm nom |
| Max Temperature | 120°C (nylon insert limit) |
| Grade | Class 8 |
| Material | Carbon steel |
| Width Across Corners | 15.0 mm max |
| Tensile Stress Area | 36.6 sq mm |
| Locking Type | Nylon Insert (Prevailing Torque) |
| Grade Material | Class 8 |
| Thread Class | 6H |
| Proof Load | 29.3 kN (6,584 lbf) |
| Head Marking | Class 8 marking |
| Inch Metric | Metric |
