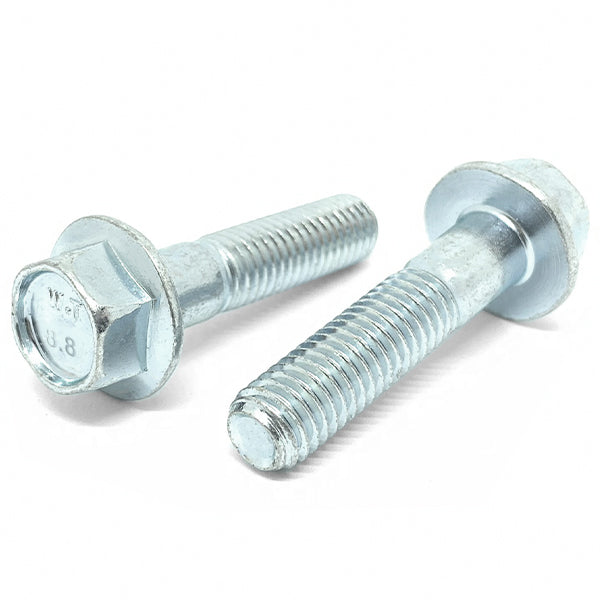

M6-1.0x60 Class 8.8 Hex Flange Bolts Zinc Clear

Product Description

Part Number: M6C60BF88Z/D
Diameter/Pitch: M6-1.0
Grade: Class 8.8
Length Under Head: 60MM
Finish: Zinc Clear
Thread Series: Metric coarse
Threading: Partially threaded
Wrench Size: 10MM

BoltsandNuts.com

M6-1.0x60 Class 8.8 Hex Flange Bolts Zinc Clear

SKU: M6C60BF88Z/D

Product Description

Part Number: M6C60BF88Z/D
Diameter/Pitch: M6-1.0
Grade: Class 8.8
Length Under Head: 60MM
Finish: Zinc Clear
Thread Series: Metric coarse
Threading: Partially threaded
Wrench Size: 10MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.77/pc

Popular

50

$0.58/pc

100

$0.49/pc

250

$0.39/pc

Best Value

1000

$0.30/pc

$0.77

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	M6-1
Material	Medium carbon steel, quenched and tempered
Wrench Size	10MM
Thread Length	18 mm ref
Tensile Strength (min)	800 MPa (116,030 psi)
Specifications Met	ISO 4162 / DIN 6921, ISO 898-1 Class 8.8

Length	60 mm
Finish	Zinc Clear
Thread Series	Metric coarse
Head Marking	"8.8" on head
Proof Load (min)	11.7 kN (2,624 lbf)

Grade	Class 8.8
Head Type	Hex Flange (Frame Bolt)
Threading	Partially threaded
Thread Class	6g
Hardness	22–32 HRC

Technical Drawing

Not to scale · ISO 4162 / DIN 6921 · See table for exact dimensions

Technical Dimensions

Length Under Flange	60 mm
Major Thread Dia.	6 mm
Thread Class	6g
Proof Load	11.7 kN (2,624 lbf)
Min. Tensile Strength	800 MPa (116,030 psi)
Yield Strength	640 MPa
Hardness	22–32 HRC
Material	Medium carbon steel, quenched and tempered

Hex head with an integral washer-style flange that spreads clamp load over a wider area, often removing the need for a separate washer. Partially threaded shank, plain under the head, with ISO metric coarse threads.

Dimensions conform to ISO 4162 / DIN 6921 and may vary within specified manufacturing tolerances.
