B&N Pro Membership
Product Description
Part Number: M6CNKE8Z
Diameter/Pitch: M6-1.0
Grade: Class 8
Finish: Zinc Clear
Thread Series: Metric coarse
Wrench Size: 10MM
BoltsandNuts.com
M6-1.0 Class 8 Hex K-Lock Nuts Zinc
Product Description
Part Number: M6CNKE8Z
Diameter/Pitch: M6-1.0
Grade: Class 8
Finish: Zinc Clear
Thread Series: Metric coarse
Wrench Size: 10MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.19/pc
Popular
100
$0.15/pc
200
$0.12/pc
500
$0.099/pc
Best Value
4000
$0.0743/pc
$0.19
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | M6-1 |
| Finish | Zinc Clear |
| Thread Series | Metric coarse |
| Proof Load (min) | 16.1 kN (3,619 lbf) |
| Grade | Class 8 |
| Head Type | Hex |
| Head Marking | Class 8 marking |
| Specifications Met | ISO 4032 / DIN 934, ISO 898-2 Class 8 |
| Material | Carbon steel |
| Wrench Size | 10MM |
| Thread Class | 6H |
| Height | 5.2 mm nom |
Technical Drawing
Not to scale · ISO 4032 / DIN 934 · See table for exact dimensions
Technical Dimensions
| Width Across Flats | 10 mm |
| Nut Height | 5.2 mm nom |
| Thread Size | M6-1 |
| Width Across Corners | 11.5 mm max |
| Thread Class | 6H |
| Proof Load | 16.1 kN (3,619 lbf) |

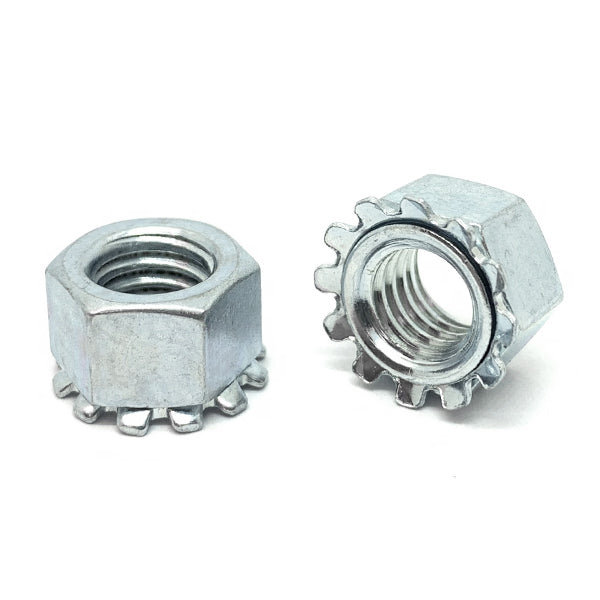

K-lock (Keps) nut: a hex nut with a free-spinning external tooth lock washer attached, so the washer is always in place. The teeth bite the bearing surface to resist loosening.
Dimensions conform to ISO 4032 / DIN 934 and may vary within specified manufacturing tolerances.
