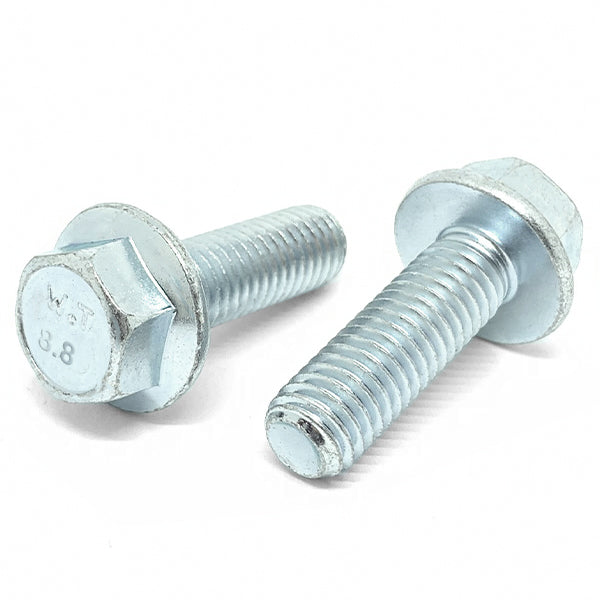

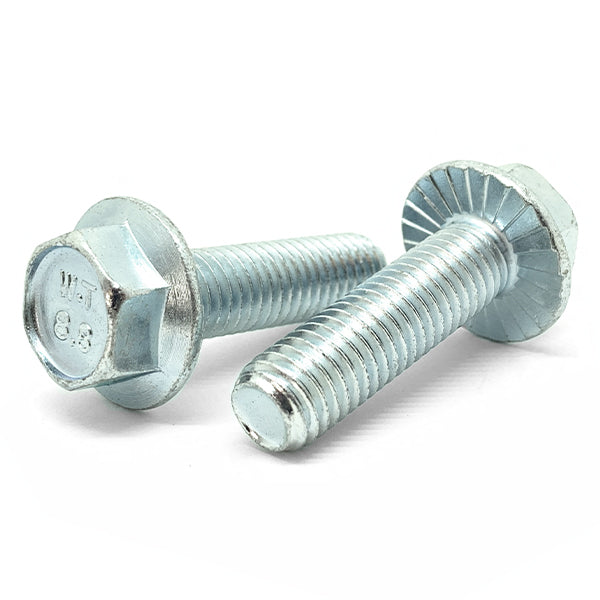

M6-1.0x30 Class 8.8 Hex Serrated Flange Bolts Zinc Clear

Product Description

Part Number: M6C30SFS88Z
Diameter/Pitch: M6-1.0
Grade: Class 8.8
Length Under Head: 30MM
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 10MM
Click Here for Tech Drawing

BoltsandNuts.com

M6-1.0x30 Class 8.8 Hex Serrated Flange Bolts Zinc Clear

SKU: M6C30SFS88Z

Product Description

Part Number: M6C30SFS88Z
Diameter/Pitch: M6-1.0
Grade: Class 8.8
Length Under Head: 30MM
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 10MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.37/pc

Popular

50

$0.27/pc

100

$0.23/pc

250

$0.18/pc

Best Value

1800

$0.14/pc

$0.37

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M6-1
Grade Material	Class 8.8
Thread Class	6g
Head Height	4 mm nom
Clamp Load	8.8 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Head Type	Hex Flange (Serrated)

Length Under Head	30 mm
Finish	Zinc Clear
Width Across Flats	10 mm
Major Diameter	6 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	20.1 sq mm
Torque Dry	11 Nm (8 ft-lb)
Thread Length	Fully threaded

Grade	Class 8.8
Partial Full Threads	Full
Width Across Corners	11.5 mm max
Proof Load	11.7 kN (2,624 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	8 Nm (6 ft-lb)
Inch Metric	Metric
