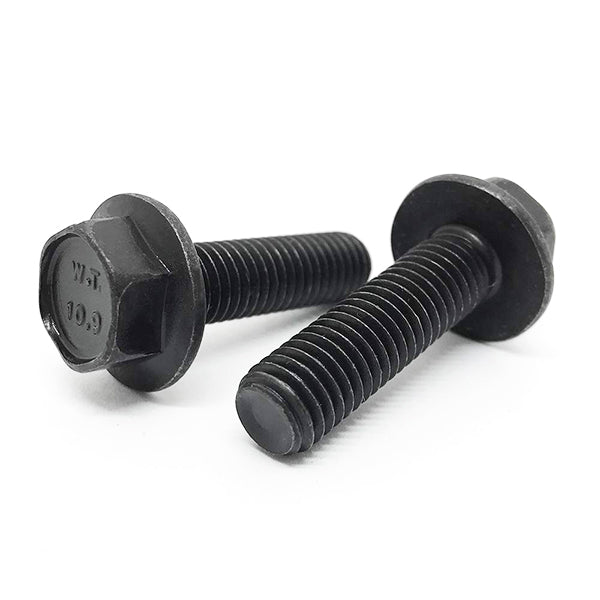

M5-.8x20 Class 10.9 Hex Flange Bolts Phos & Oil

Product Description

Part Number: M5C20BF10P/D
Diameter/Pitch: M5-0.8
Grade: Class 10.9
Length Under Head: 20MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 8MM
Click Here for Tech Drawing

BoltsandNuts.com

M5-.8x20 Class 10.9 Hex Flange Bolts Phos & Oil

SKU: M5C20BF10P/D

Product Description

Part Number: M5C20BF10P/D
Diameter/Pitch: M5-0.8
Grade: Class 10.9
Length Under Head: 20MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 8MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.24/pc

Popular

150

$0.17/pc

300

$0.15/pc

750

$0.12/pc

Best Value

4200

$0.09/pc

$0.24

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M5-0.8
Grade Material	Class 10.9
Partial Full Threads	Full
Wrench Size	8MM
Head Height	3.5 mm nom
Clamp Load	8.8 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Length	20 mm
Thread Length	Fully threaded

Length Under Head	20 mm
Finish	Phosphate & Oil
Coarse Fine Threads	Coarse
Width Across Flats	8 mm
Major Diameter	5 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	14.2 sq mm
Torque Dry	9 Nm (7 ft-lb)
Head Type	Hex Flange (Frame Bolt)
Inch Metric	Metric

Grade	Class 10.9
Material	Medium carbon alloy steel, quenched and tempered
Thread Class	6g
Width Across Corners	9.2 mm max
Proof Load	11.8 kN (2,646 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	7 Nm (5 ft-lb)
Nominal Size	M5
