Part Number: M5CFLN8Z
Diameter/Pitch: M5-0.8
Grade: Class 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 8MM
BoltsandNuts.com

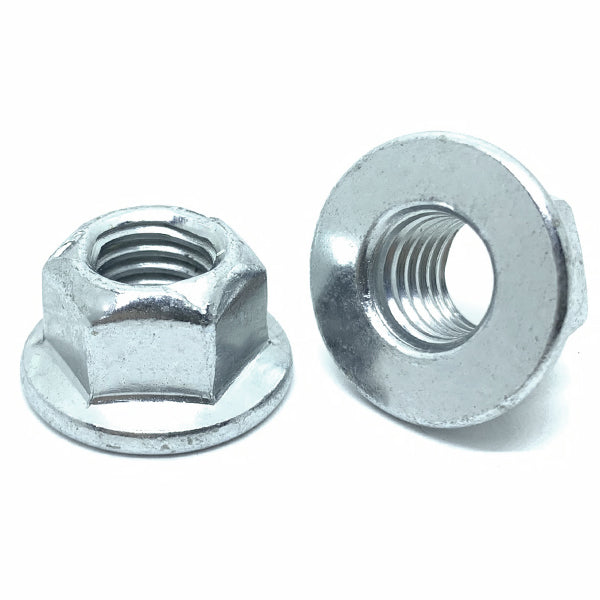

M5-0.80 Class 8 Hex Flange Prevailing Torque Top Lock Nuts Zinc Clear
Product Description
Part Number: M5CFLN8Z
Diameter/Pitch: M5-0.8
Grade: Class 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 8MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.21/pc
Popular
100
$0.16/pc
200
$0.13/pc
500
$0.10/pc
Best Value
5000
$0.08/pc
$0.21
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M5-0.8 |
| Finish | Zinc Clear |
| Thread Class | 6H |
| Major Diameter | 5 mm |
| Height | 4.7 mm nom |
| Inch Metric | Metric |
| Grade | Class 10 |
| Material | Carbon steel, heat treated |
| Wrench Size | 8MM |
| Tensile Stress Area | 14.2 sq mm |
| Nominal Size | M5 |
| Max Temperature | Rated to 230°C (all-metal) |
| Grade Material | Class 8 |
| Coarse Fine Threads | Coarse |
| Width Across Flats | 8 mm |
| Head Type | Hex Flange |
| Locking Type | All-metal prevailing torque (distorted thread) |
