Product Description
Part Number: M14CFLN10Y
Diameter/Pitch: M14-2.0
Grade: Class 10
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Wrench Size: 21MM
Click Here for Tech Drawing
BoltsandNuts.com

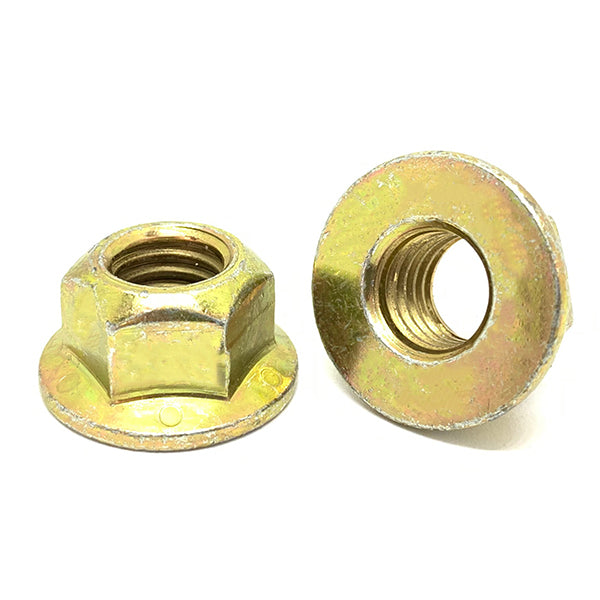

M14-2.0 Class 10 Hex Flange Prevailing Torque Top Lock Nuts Zinc Yellow
Product Description
Part Number: M14CFLN10Y
Diameter/Pitch: M14-2.0
Grade: Class 10
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Wrench Size: 21MM
Click Here for Tech Drawing
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
$2.57
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M14-2 |
| Finish | Zinc Yellow |
| Thread Class | 6H |
| Major Diameter | 14 mm |
| Height | 12.8 mm nom |
| Inch Metric | Metric |
| Grade | Class 10 |
| Material | Carbon steel, heat treated |
| Wrench Size | 21MM |
| Tensile Stress Area | 115.4 sq mm |
| Nominal Size | M14 |
| Max Temperature | Rated to 230°C (all-metal) |
| Grade Material | Class 10 |
| Coarse Fine Threads | Coarse |
| Width Across Flats | 21 mm |
| Head Type | Hex Flange |
| Locking Type | All-metal prevailing torque (distorted thread) |
