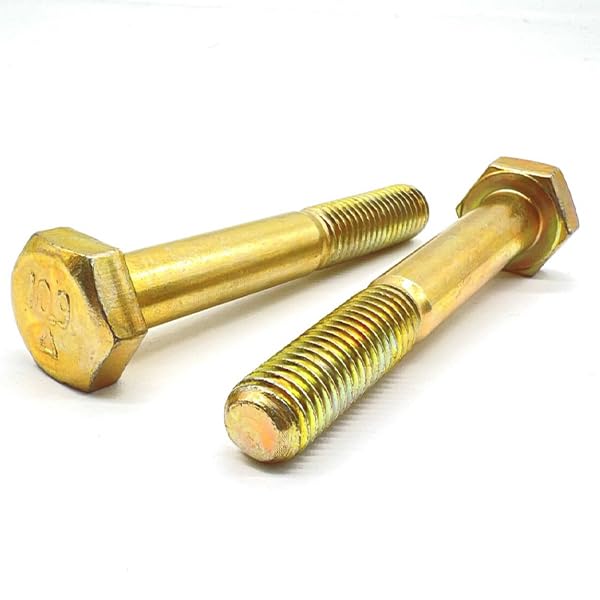

M14-2.00x90 Class 10.9 Hex Cap Screws Zinc Yellow

Product Description

Part Number: M14C90HCS10Y
Diameter/Pitch: M14-2.0
Grade: Class 10.9
Length Under Head: 90MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 22MM
Click Here for Tech Drawing

BoltsandNuts.com

M14-2.00x90 Class 10.9 Hex Cap Screws Zinc Yellow

SKU: M14C90HCS10Y

Product Description

Part Number: M14C90HCS10Y
Diameter/Pitch: M14-2.0
Grade: Class 10.9
Length Under Head: 90MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 22MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$5.78/pc

Popular

4

$4.33/pc

8

$3.68/pc

20

$2.94/pc

Best Value

140

$2.21/pc

$5.78

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M14-2
Grade Material	Class 10.9
Partial Full Threads	Partial
Wrench Size	22MM
Head Height	8.8 mm nom
Clamp Load	71.9 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Length	90 mm
Inch Metric	Metric

Length Under Head	90 mm
Finish	Zinc Yellow
Coarse Fine Threads	Coarse
Width Across Flats	21 mm
Major Diameter	14 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	115.4 sq mm
Torque Dry	201 Nm (148 ft-lb)
Nominal Size	M14

Grade	Class 10.9
Material	Medium carbon alloy steel, quenched and tempered
Thread Class	6g
Width Across Corners	24.2 mm max
Proof Load	95.8 kN (21,540 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	151 Nm (111 ft-lb)
Thread Length	34 mm ref
