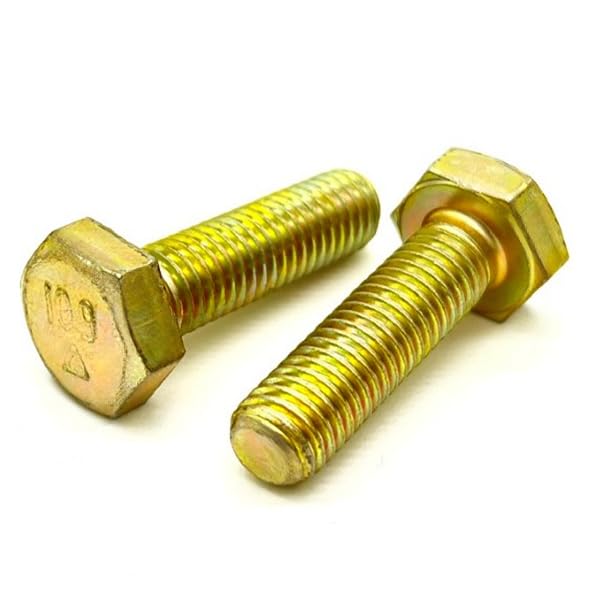

M12-1.75x35 Class 10.9 Hex Cap Screws Zinc Yellow

Product Description

Part Number: M12C35HCS10Y
Diameter/Pitch: M12-1.75
Grade: Class 10.9
Length Under Head: 35MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 19MM
Click Here for Tech Drawing

BoltsandNuts.com

M12-1.75x35 Class 10.9 Hex Cap Screws Zinc Yellow

SKU: M12C35HCS10Y

Product Description

Part Number: M12C35HCS10Y
Diameter/Pitch: M12-1.75
Grade: Class 10.9
Length Under Head: 35MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 19MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.83/pc

Popular

14

$1.37/pc

28

$1.16/pc

70

$0.93/pc

Best Value

400

$0.70/pc

$1.83

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M12-1.75
Grade Material	Class 10.9
Thread Class	6g
Head Height	7.5 mm nom
Clamp Load	52.5 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Thread Length	30 mm ref

Length Under Head	35 mm
Finish	Zinc Yellow
Width Across Flats	18 mm
Major Diameter	12 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	84.3 sq mm
Torque Dry	126 Nm (93 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Partial Full Threads	Full
Width Across Corners	20.8 mm max
Proof Load	69.9 kN (15,723 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	94 Nm (70 ft-lb)
