Product Description
Part Number: M12CNHF8Y
Diameter/Pitch: M12-1.75
Grade: Class 8
Finish: Zinc Yellow
Thread Series: Metric coarse
Wrench Size: 18MM
BoltsandNuts.com

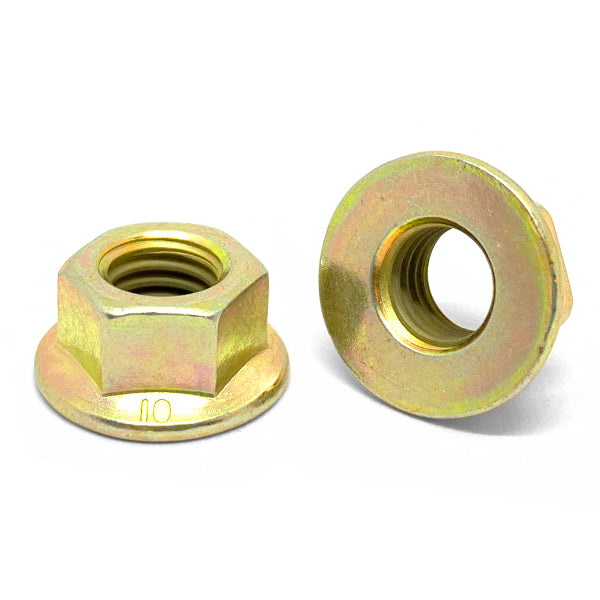

M12-1.75 Class 8 Hex Flange Nuts Zinc Yellow
Product Description
Part Number: M12CNHF8Y
Diameter/Pitch: M12-1.75
Grade: Class 8
Finish: Zinc Yellow
Thread Series: Metric coarse
Wrench Size: 18MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.61/pc
Popular
25
$0.45/pc
50
$0.39/pc
125
$0.31/pc
Best Value
900
$0.23/pc
$0.61
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | M12-1.75 |
| Finish | Zinc Yellow |
| Thread Series | Metric coarse |
| Grade | Class 8 |
| Head Type | Hex Flange |
| Thread Class | 6H |
| Material | Medium carbon steel, quenched and tempered |
| Wrench Size | 18MM |
| Specifications Met | ISO 4161 / DIN 6923, ISO 898-2 Class 8 |
Technical Drawing
Not to scale · ISO 4161 / DIN 6923 · See table for exact dimensions
Technical Dimensions
| Wrench Size | 18MM |
| Thread Size | M12-1.75 |
| Thread Class | 6H |
| Flange Style | Smooth Flange Nuts |
| Head Type | Hex Flange |
| Material | Medium carbon steel, quenched and tempered |
Hex nut with an integral flange that spreads load like a built-in washer, often removing the need for a separate washer.
Dimensions conform to ISO 4161 / DIN 6923 and may vary within specified manufacturing tolerances.
