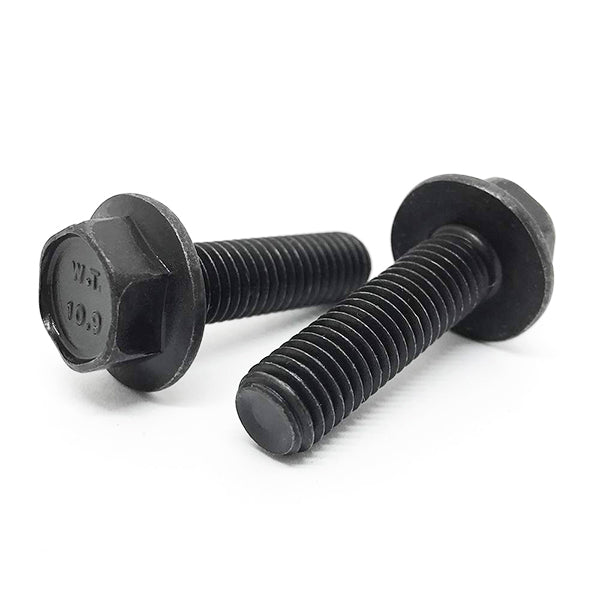

M12-1.5x25 Class 10.9 Fine Thread Hex Flange Bolts Phos & Oil

Product Description

Part Number: M12F25BF10P/D
Diameter/Pitch: M12-1.5
Grade: Class 10.9
Length Under Head: 25MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 16MM
Click Here for Tech Drawing

BoltsandNuts.com

M12-1.5x25 Class 10.9 Fine Thread Hex Flange Bolts Phos & Oil

SKU: M12F25BF10P/D

Product Description

Part Number: M12F25BF10P/D
Diameter/Pitch: M12-1.5
Grade: Class 10.9
Length Under Head: 25MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 16MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$2.39/pc

Popular

15

$1.79/pc

30

$1.52/pc

75

$1.21/pc

Best Value

550

$0.91/pc

$2.39

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M12-1.5
Grade Material	Class 10.9
Thread Class	6g
Head Height	7.5 mm nom
Clamp Load	54.9 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	25 mm
Finish	Phosphate & Oil
Width Across Flats	18 mm
Major Diameter	12 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	88.1 sq mm
Torque Dry	132 Nm (97 ft-lb)
Thread Length	Fully threaded

Grade	Class 10.9
Partial Full Threads	Full
Width Across Corners	20.8 mm max
Proof Load	73.1 kN (16,444 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	99 Nm (73 ft-lb)
Inch Metric	Metric
