Product Description
Part Number: M12FPTN10Z
Diameter/Pitch: M12-1.75
Grade: Class 10
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 19MM
Click Here for Tech Drawing
BoltsandNuts.com

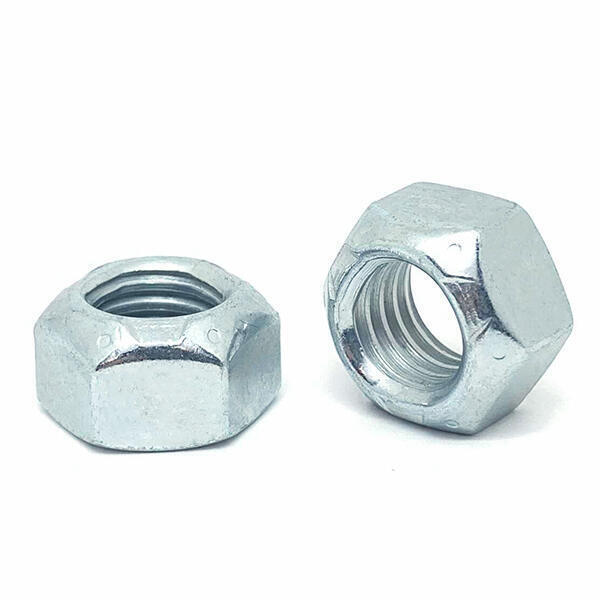

M12-1.50 Class 10 Hex Top Lock Nuts Fine Thread Zinc
Product Description
Part Number: M12FPTN10Z
Diameter/Pitch: M12-1.75
Grade: Class 10
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 19MM
Click Here for Tech Drawing
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.76/pc
Popular
25
$0.57/pc
50
$0.48/pc
125
$0.38/pc
Best Value
900
$0.29/pc
$0.76
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M12-1.5 |
| Finish | Zinc Clear |
| Thread Class | 6H |
| Major Diameter | 12 mm |
| Head Type | Hex |
| Locking Type | All-metal prevailing torque (distorted thread) |
| Grade | Class 10 |
| Material | Carbon steel, heat treated |
| Wrench Size | 19MM |
| Tensile Stress Area | 88.1 sq mm |
| Height | 10.8 mm nom |
| Inch Metric | Metric |
| Grade Material | Class 10 |
| Coarse Fine Threads | Fine |
| Width Across Flats | 18 mm |
| Lock Type | Top Lock Nuts |
| Nominal Size | M12 |
| Max Temperature | Rated to 230°C (all-metal) |
