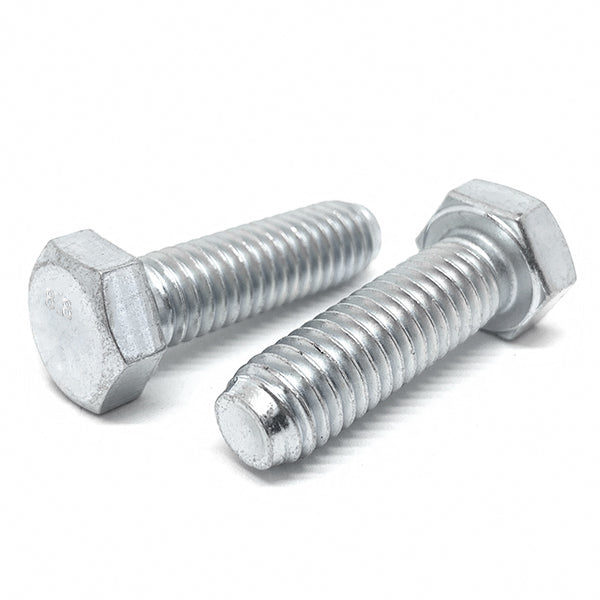

M12-1.50x20 Class 8.8 Hex Cap Screws Zinc Clear

Product Description

Part Number: M12F20HCS88Z
Diameter/Pitch: M12-1.5
Length Under Head: 20MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 19MM

BoltsandNuts.com

M12-1.50x20 Class 8.8 Hex Cap Screws Zinc Clear

SKU: M12F20HCS88Z

Product Description

Part Number: M12F20HCS88Z
Diameter/Pitch: M12-1.5
Length Under Head: 20MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 19MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.24/pc

Popular

35

$0.92/pc

70

$0.78/pc

175

$0.63/pc

Best Value

600

$0.47/pc

$1.24

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M12-1.5
Grade Material	Class 8.8
Thread Class	6g
Head Height	7.5 mm nom
Clamp Load	38.3 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Thread Length	Fully threaded

Length Under Head	20 mm
Finish	Zinc Clear
Width Across Flats	18 mm
Major Diameter	12 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	88.1 sq mm
Torque Dry	92 Nm (68 ft-lb)
Inch Metric	Metric

Grade	Class 8.8
Partial Full Threads	Full
Width Across Corners	20.8 mm max
Proof Load	51.1 kN (11,491 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	69 Nm (51 ft-lb)
