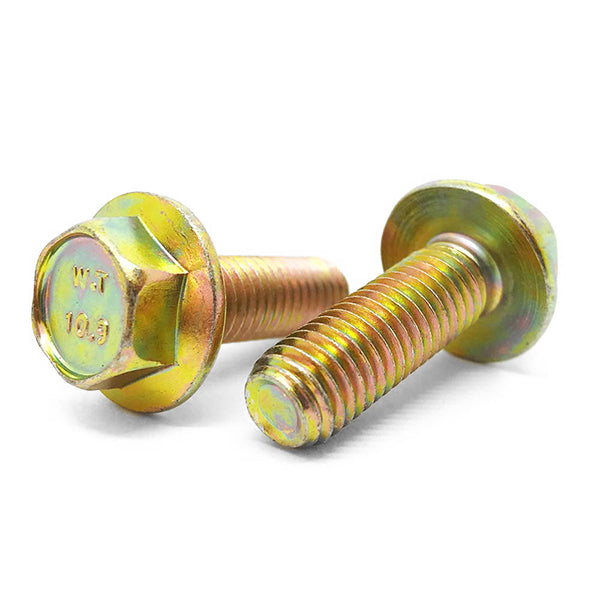

M10-1.5x25 Class 10.9 Hex Flange Bolts Zinc Yellow

Product Description

Part Number: M10C25BF10Y/D
Diameter/Pitch: M10-1.5
Grade: Class 10.9
Length Under Head: 25MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 15MM
Click Here for Tech Drawing

BoltsandNuts.com

M10-1.5x25 Class 10.9 Hex Flange Bolts Zinc Yellow

SKU: M10C25BF10Y/D

Product Description

Part Number: M10C25BF10Y/D
Diameter/Pitch: M10-1.5
Grade: Class 10.9
Length Under Head: 25MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 15MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.21/pc

Popular

50

$0.90/pc

100

$0.76/pc

250

$0.61/pc

Best Value

600

$0.46/pc

$1.21

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1.5
Grade Material	Class 10.9
Partial Full Threads	Full
Wrench Size	15MM
Head Height	6.4 mm nom
Clamp Load	36.1 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Length	25 mm
Thread Length	Fully threaded

Length Under Head	25 mm
Finish	Zinc Yellow
Coarse Fine Threads	Coarse
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	58.0 sq mm
Torque Dry	72 Nm (53 ft-lb)
Head Type	Hex Flange (Frame Bolt)
Inch Metric	Metric

Grade	Class 10.9
Material	Medium carbon alloy steel, quenched and tempered
Thread Class	6g
Width Across Corners	18.5 mm max
Proof Load	48.1 kN (10,820 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	54 Nm (40 ft-lb)
Nominal Size	M10
