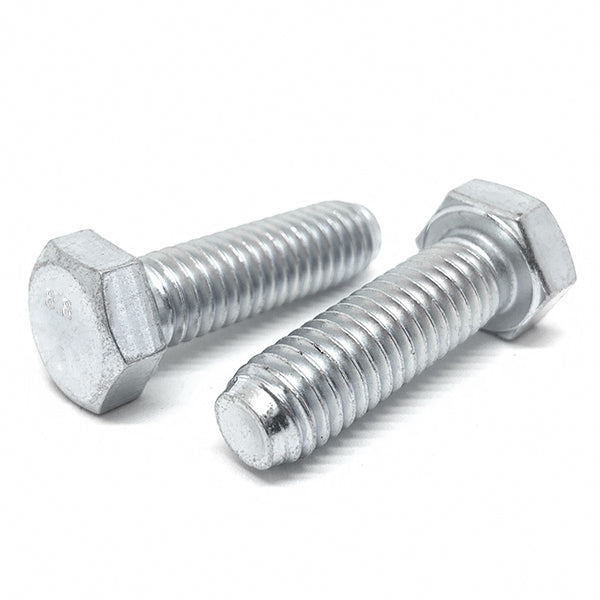

M10-1.50x55 Class 8.8 Full Thread Hex Cap Screws Zinc Clear

Product Description

Part Number: M10C55HCS88Z/FT
Diameter/Pitch: M10-1.5
Length Under Head: 55MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 17MM

BoltsandNuts.com

M10-1.50x55 Class 8.8 Full Thread Hex Cap Screws Zinc Clear

SKU: M10C55HCS88Z/FT

Product Description

Part Number: M10C55HCS88Z/FT
Diameter/Pitch: M10-1.5
Length Under Head: 55MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 17MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.50/pc

Popular

14

$1.12/pc

28

$0.95/pc

70

$0.76/pc

Best Value

450

$0.57/pc

$1.50

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1.5
Grade Material	Class 8.8
Thread Class	6g
Head Height	6.4 mm nom
Clamp Load	25.2 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Thread Length	Fully threaded

Length Under Head	55 mm
Finish	Zinc Clear
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	58.0 sq mm
Torque Dry	50 Nm (37 ft-lb)
Inch Metric	Metric

Grade	Class 8.8
Partial Full Threads	Full
Width Across Corners	18.5 mm max
Proof Load	33.6 kN (7,561 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	38 Nm (28 ft-lb)
