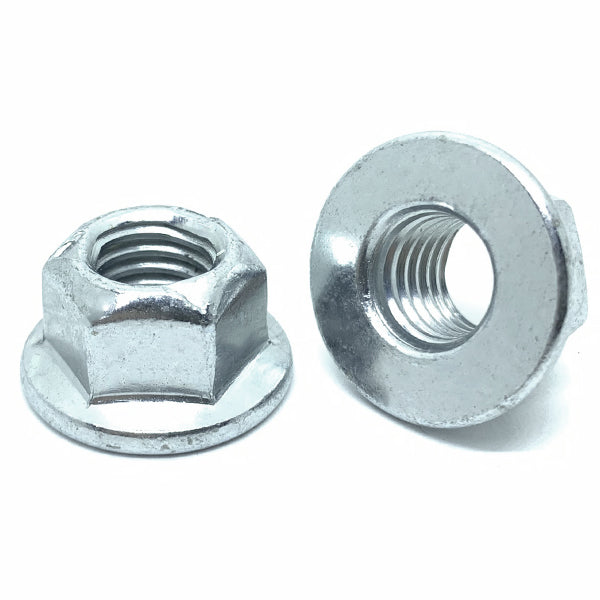

M10-1.5 Class 10 Hex Flange Prevailing Torque Top Lock Nuts Zinc Clear
Product Description
Part Number: M10CFLN10Z
Diameter/Pitch: M10-1.5
Grade: Class 10
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 15MM
Click Here for Tech Drawing
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.75/pc
Popular
50
$0.56/pc
100
$0.47/pc
250
$0.38/pc
Best Value
1200
$0.28/pc
$0.75
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M10-1.5 |
| Finish | Zinc Clear |
| Thread Class | 6H |
| Major Diameter | 10 mm |
| Height | 8.4 mm nom |
| Inch Metric | Metric |
| Grade | Class 10 |
| Material | Carbon steel, heat treated |
| Wrench Size | 15MM |
| Tensile Stress Area | 58.0 sq mm |
| Nominal Size | M10 |
| Max Temperature | Rated to 230°C (all-metal) |
| Grade Material | Class 10 |
| Coarse Fine Threads | Coarse |
| Width Across Flats | 16 mm |
| Head Type | Hex Flange |
| Locking Type | All-metal prevailing torque (distorted thread) |
