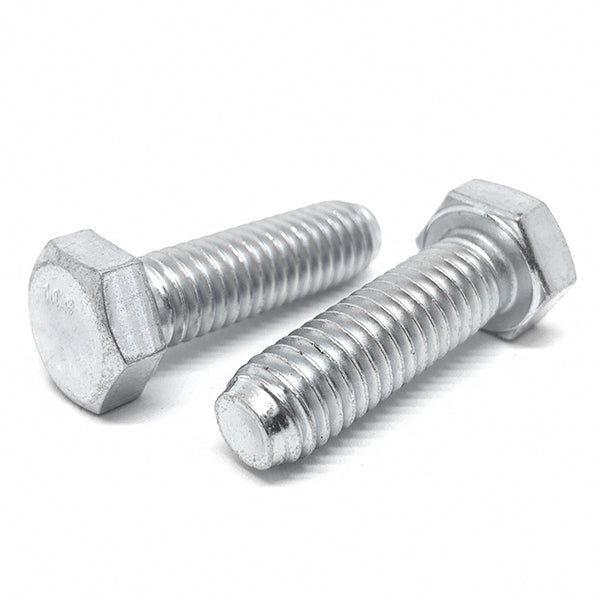

M10-1.00x30 Class 10.9 Hex Cap Screws Extra Fine Thread Zinc Clear

Product Description

Part Number: M10EF30HCS10Z
Diameter/Pitch: M10-1.0
Grade: Class 10.9
Length Under Head: 30MM
Finish: Zinc Clear
Coarse / Fine Threads: Extra Fine
Partial / Full Threads: Full
Wrench Size: 17MM
Click Here for Tech Drawing

BoltsandNuts.com

M10-1.00x30 Class 10.9 Hex Cap Screws Extra Fine Thread Zinc Clear

SKU: M10EF30HCS10Z

Product Description

Part Number: M10EF30HCS10Z
Diameter/Pitch: M10-1.0
Grade: Class 10.9
Length Under Head: 30MM
Finish: Zinc Clear
Coarse / Fine Threads: Extra Fine
Partial / Full Threads: Full
Wrench Size: 17MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$2.92/pc

Popular

25

$2.18/pc

50

$1.85/pc

125

$1.48/pc

Best Value

700

$1.11/pc

$2.92

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1
Grade Material	Class 10.9
Thread Class	6g
Head Height	6.4 mm nom
Clamp Load	40.1 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Thread Length	26 mm ref

Length Under Head	30 mm
Finish	Zinc Clear
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	64.5 sq mm
Torque Dry	80 Nm (59 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Partial Full Threads	Full
Width Across Corners	18.5 mm max
Proof Load	53.5 kN (12,034 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	60 Nm (44 ft-lb)
