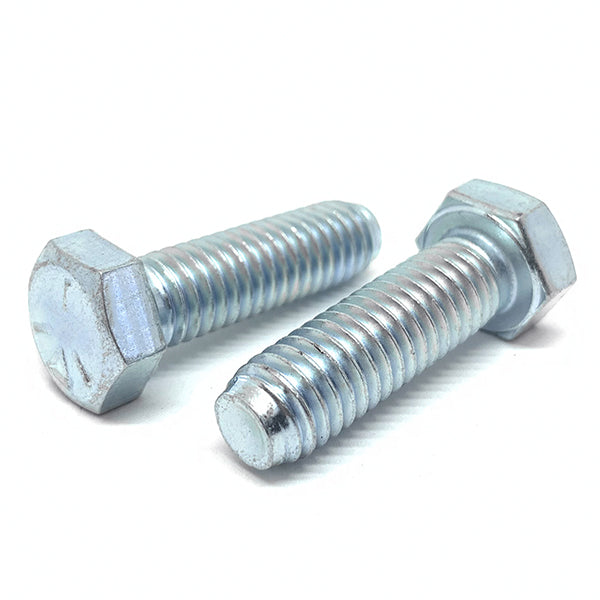

7/16-20x7/8" Hex Cap Screws Grade 5 Bolts Zinc Clear

Product Description

Part Number: 43F87HCS5Z
Diameter/Pitch: 7/16"-20
Length Under Head: 7/8"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 5/8"

Click Here for Tech Drawing

BoltsandNuts.com

7/16-20x7/8" Hex Cap Screws Grade 5 Bolts Zinc Clear

SKU: 43F87HCS5Z

Product Description

Part Number: 43F87HCS5Z
Diameter/Pitch: 7/16"-20
Length Under Head: 7/8"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 5/8"

Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.88/pc

Popular

25

$0.66/pc

50

$0.56/pc

125

$0.45/pc

Best Value

700

$0.33/pc

$0.88

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	7/16"-20
Grade Material	Grade 5
Threads Per Inch	20 TPI
Head Height	0.272" – 0.291"
Clamp Load	7,570 lbf
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34
Torque Lubricated	41 ft-lb

Length Under Head	7/8"
Partial Full Threads	Full
Width Across Flats	0.625" (5/8")
Major Diameter	0.438"
Min Tensile Load	14,250 lbf
Proof Stress	85,000 psi
Head Marking	Three radial lines on head
Thread Length	Fully threaded

Grade	Grade 5
Thread Class	2A
Width Across Corners	0.722" max
Proof Load	10,090 lbf
Tensile Strength	120,000 psi
Tensile Stress Area	0.1187 sq in
Torque Dry	55 ft-lb
