Product Description
Part Number: 43UNT2Z
Diameter: 7/16"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 1/2" (Min 0.495", Max 0.515")
Outside Diameter: 1-1/4" (Min 1.243", Max 1.280")
Thickness : 0.064" - 0.104"
BoltsandNuts.com

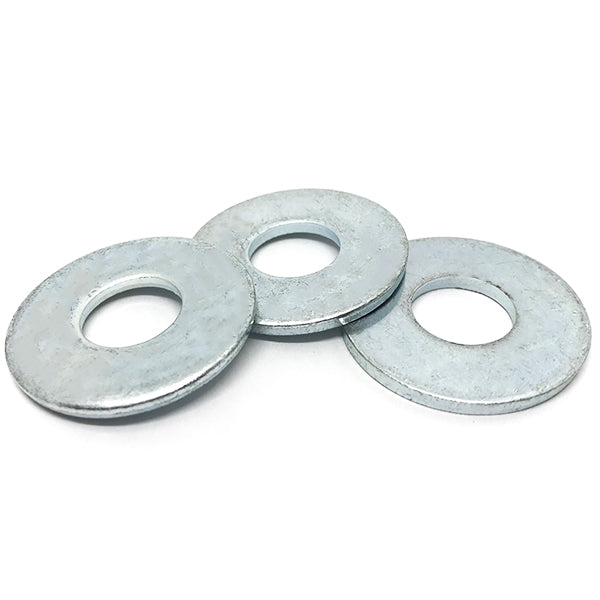

7/16" USS Low Carbon Flat Washers Zinc
Product Description
Part Number: 43UNT2Z
Diameter: 7/16"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 1/2" (Min 0.495", Max 0.515")
Outside Diameter: 1-1/4" (Min 1.243", Max 1.280")
Thickness : 0.064" - 0.104"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.27/pc
Popular
75
$0.20/pc
150
$0.17/pc
375
$0.14/pc
Best Value
2000
$0.10/pc
$0.27
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Low Carbon |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.083" nom |
| System | Inch |
| Material | Low carbon steel |
| Pattern | USS (Wide) series |
| Outside Diameter | 1.250" nom |
| Finish | Zinc Clear |
| Diameter | 7/16" |
| Inside Diameter | 0.500" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 1.250" nom |
| Inside Diameter | 0.500" nom |
| Thickness | 0.083" nom |
| Fits Bolt Size | 7/16" |
| Series | USS (Wide) series |
| Material | Low carbon steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
