Product Description
Part Number: 43C87HCS5Z
Diameter/Pitch: 7/16"-14
Length Under Head: 7/8"
Grade: Grade 5
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Threading: Fully threaded
Wrench Size: 5/8"
BoltsandNuts.com

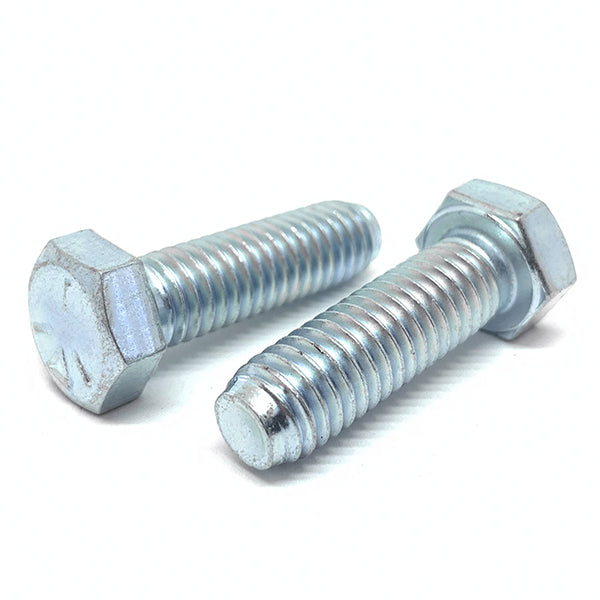

7/16-14x7/8" Hex Cap Screws Grade 5 Bolts Zinc Clear
Product Description
Part Number: 43C87HCS5Z
Diameter/Pitch: 7/16"-14
Length Under Head: 7/8"
Grade: Grade 5
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Threading: Fully threaded
Wrench Size: 5/8"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.82/pc
Popular
25
$0.62/pc
50
$0.53/pc
125
$0.42/pc
Best Value
700
$0.32/pc
$0.82
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | 7/16"-14 |
| Material | Medium carbon steel, quenched and tempered |
| Thread Series | Coarse (UNC) |
| Head Marking | Three radial lines on head |
| Proof Load (min) | 9,040 lbf |
| Length | 7/8" |
| Finish | Zinc Clear |
| Threading | Fully threaded |
| Thread Class | 2A |
| Hardness | Rockwell C25–C34 |
| Grade | Grade 5 |
| Wrench Size | 5/8" |
| Head Height | 0.272" – 0.291" |
| Tensile Strength (min) | 120,000 psi |
| Specifications Met | ASME B18.2.1, SAE J429 Grade 5 |
Technical Drawing
Not to scale · ASME B18.2.1 · See table for exact dimensions
Technical Dimensions
| Length Under Head | 7/8" |
| Major Thread Dia. | 0.438" |
| Head Height | 0.272" – 0.291" |
| Width Across Flats | 0.625" (5/8") |
| Width Across Corners | 0.722" max |
| Threads Per Inch | 14 TPI |
| Thread Length | Fully threaded |
| Thread Class | 2A |
| Proof Load | 9,040 lbf |
| Clamp Load | 6,780 lbf |
| Min. Tensile Strength | 120,000 psi |
| Yield Strength | 92,000 psi |
| Hardness | Rockwell C25–C34 |
Hex cap screw with a hexagonal head for external wrench engagement and a chamfered point for easier starting. The flat bearing surface distributes clamp load across the joint. Fully threaded shank, with unified coarse (UNC) threads.
Dimensions conform to ASME B18.2.1 and may vary within specified manufacturing tolerances.
