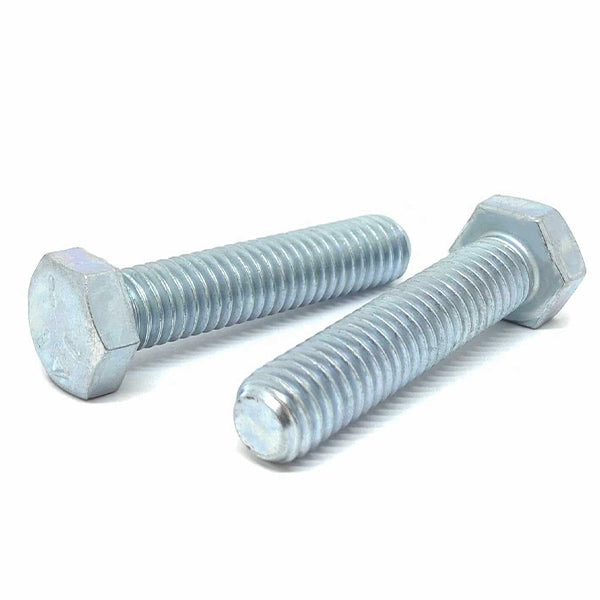

3/4-10x6" Hex Tap Bolts Grade 5 Full Thread Zinc

Product Description

Part Number: 75C600HTB5Z/FT
Diameter/Pitch: 3/4"-10
Length Under Head: 6"
Grade: Grade 5
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Threading: Fully threaded
Wrench Size: 1-1/8"

BoltsandNuts.com

3/4-10x6" Hex Tap Bolts Grade 5 Full Thread Zinc

SKU: 75C600HTB5Z/FT

Product Description

Part Number: 75C600HTB5Z/FT
Diameter/Pitch: 3/4"-10
Length Under Head: 6"
Grade: Grade 5
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Threading: Fully threaded
Wrench Size: 1-1/8"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$11.81/pc

Popular

5

$8.86/pc

10

$7.53/pc

25

$6.03/pc

Best Value

50

$4.52/pc

$11.81

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	3/4"-10
Material	Medium carbon steel, quenched and tempered
Wrench Size	1-1/8"
Head Height	0.455" – 0.483"
Tensile Strength (min)	120,000 psi
Specifications Met	ASME B18.2.1, SAE J429 Grade 5

Length	6"
Finish	Zinc Clear
Thread Series	Coarse (UNC)
Head Marking	Three radial lines on head
Proof Load (min)	28,430 lbf

Grade	Grade 5
Head Type	Hex Tap Bolt
Threading	Fully threaded
Thread Class	2A
Hardness	Rockwell C25–C34

Technical Drawing

Not to scale · ASME B18.2.1 · See table for exact dimensions

Technical Dimensions

Length Under Head	6"
Major Thread Dia.	0.750"
Head Height	0.455" – 0.483"
Width Across Flats	1.125" (1-1/8")
Width Across Corners	1.299" max
Threads Per Inch	10 TPI
Thread Length	Fully threaded
Thread Class	2A
Proof Load	28,430 lbf
Clamp Load	21,320 lbf
Min. Tensile Strength	120,000 psi
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34

Hex tap bolt for tapped holes or anywhere the full length must engage a thread. Hexagonal head for external wrench engagement and a chamfered point for easier starting. Fully threaded shank, with unified coarse (UNC) threads.

Dimensions conform to ASME B18.2.1 and may vary within specified manufacturing tolerances.
