Product Description
Part Number: 75UNT2Z
Diameter: 3/4"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 13/16" (Min 0.805", Max 0.842")
Outside Diameter: 2" (Min 1.993", Max 2.030")
Thickness : 0.122" - 0.177"
BoltsandNuts.com

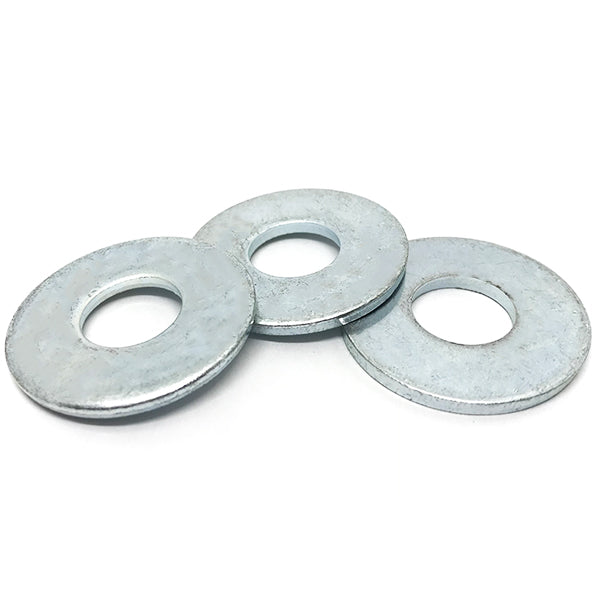

3/4" USS Low Carbon Flat Washers Zinc
Product Description
Part Number: 75UNT2Z
Diameter: 3/4"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 13/16" (Min 0.805", Max 0.842")
Outside Diameter: 2" (Min 1.993", Max 2.030")
Thickness : 0.122" - 0.177"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.91/pc
Popular
15
$0.69/pc
30
$0.58/pc
75
$0.47/pc
Best Value
445
$0.35/pc
$0.91
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Low Carbon |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.148" nom |
| System | Inch |
| Material | Low carbon steel |
| Pattern | USS (Wide) series |
| Outside Diameter | 2.000" nom |
| Finish | Zinc Clear |
| Diameter | 3/4" |
| Inside Diameter | 0.812" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 2.000" nom |
| Inside Diameter | 0.812" nom |
| Thickness | 0.148" nom |
| Fits Bolt Size | 3/4" |
| Series | USS (Wide) series |
| Material | Low carbon steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
