Product Description
Part Number: M8C45BCG46Z
Diameter/Pitch: M8-1.25
Length Under Head: 35MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Square Width (Max): 8.58 MM
BoltsandNuts.com

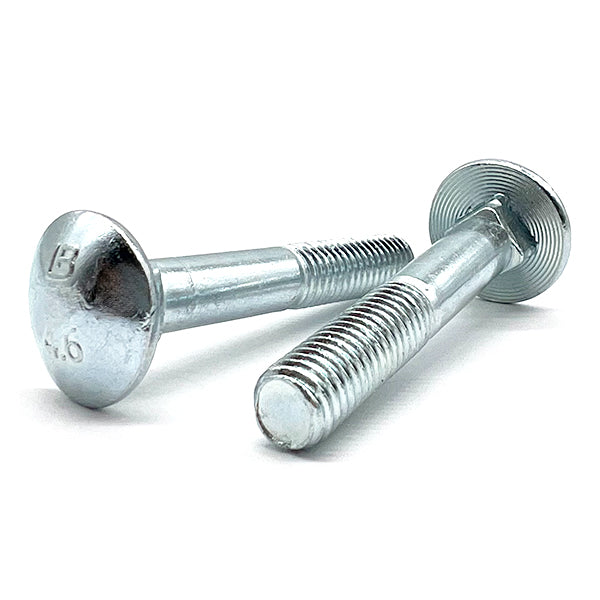

M8-1.25x45 Class 4.6 Round Head Carriage Bolts Zinc
Product Description
Part Number: M8C45BCG46Z
Diameter/Pitch: M8-1.25
Length Under Head: 35MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Square Width (Max): 8.58 MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.89/pc
Popular
25
$0.67/pc
50
$0.57/pc
125
$0.45/pc
Best Value
625
$0.34/pc
$0.89
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M8-1.25 |
| Grade Material | Class 4.6 |
| Partial Full Threads | Partial |
| Proof Load | 8.2 kN |
| Proof Stress | 225 MPa |
| Head Type | Round Head, Square Neck |
| Length Under Head | 45 mm |
| Finish | Zinc Clear |
| Thread Class | 6g |
| Tensile Strength | 400 MPa (58,015 psi) |
| Tensile Stress Area | 36.6 sq mm |
| Inch Metric | Metric |
| Grade | Class 4.6 |
| Material | Low carbon steel |
| Major Diameter | 8 mm |
| Yield Strength | 240 MPa |
| Head Marking | "4.6" marking |
