Product Description
Part Number: M8C40BF10Z/D
Diameter/Pitch: M8-1.25
Length Under Head: 40MM
Grade: Class 10.9
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Partial
Wrench Size: 13MM
BoltsandNuts.com

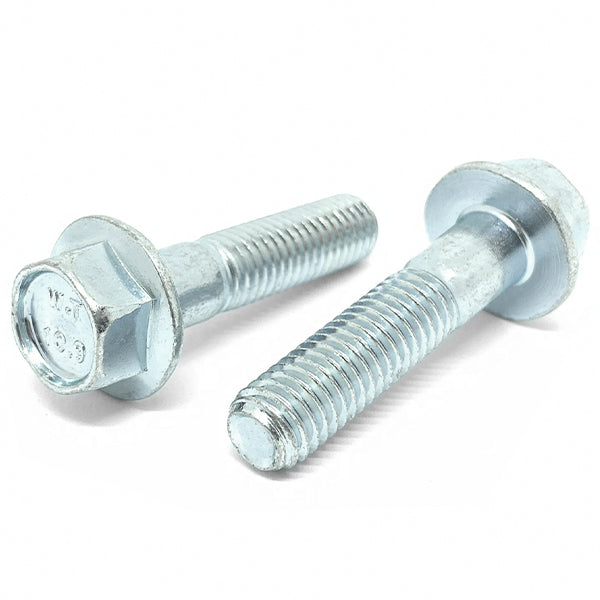

M8-1.25x40 Class 10.9 Hex Flange Bolts Zinc Clear
Product Description
Part Number: M8C40BF10Z/D
Diameter/Pitch: M8-1.25
Length Under Head: 40MM
Grade: Class 10.9
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Partial
Wrench Size: 13MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$1.01/pc
Popular
25
$0.75/pc
50
$0.64/pc
125
$0.51/pc
Best Value
700
$0.38/pc
$1.01
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M8-1.25 |
| Grade Material | Class 10.9 |
| Thread Class | 6g |
| Head Height | 5.3 mm nom |
| Clamp Load | 22.8 kN |
| Proof Stress | 830 MPa |
| Head Marking | "10.9" on head |
| Head Type | Hex Flange (Frame Bolt) |
| Length Under Head | 40 mm |
| Finish | Zinc Clear |
| Width Across Flats | 13 mm |
| Major Diameter | 8 mm |
| Tensile Strength | 1,040 MPa (150,840 psi) |
| Tensile Stress Area | 36.6 sq mm |
| Torque Dry | 36 Nm (27 ft-lb) |
| Thread Length | Fully threaded |
| Grade | Class 10.9 |
| Partial Full Threads | Partial |
| Width Across Corners | 15.0 mm max |
| Proof Load | 30.4 kN (6,831 lbf) |
| Yield Strength | 940 MPa |
| Hardness | 32–39 HRC |
| Torque Lubricated | 27 Nm (20 ft-lb) |
| Inch Metric | Metric |
