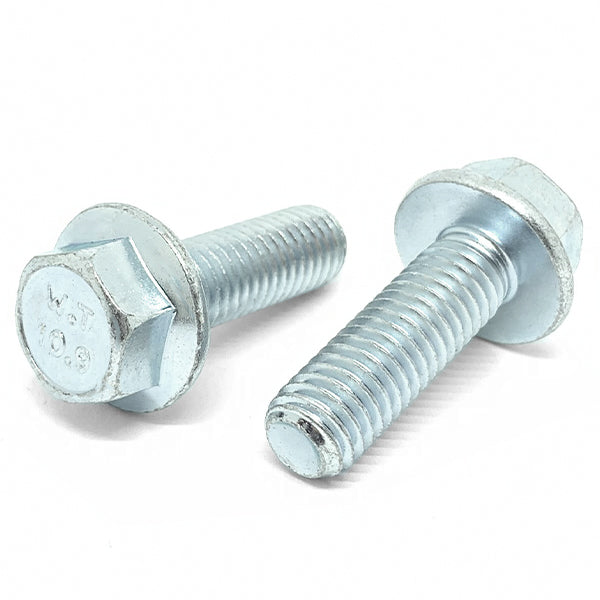

M8-1.25x25 Class 10.9 JIS Hex Flange Bolts Zinc Clear

Product Description

Part Number: M8C25BF10Z/J
Diameter/Pitch: M8-1.25
Grade: Class 10.9
Length Under Head: 25MM
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 12MM

BoltsandNuts.com

M8-1.25x25 Class 10.9 JIS Hex Flange Bolts Zinc Clear

SKU: M8C25BF10Z/J

Product Description

Part Number: M8C25BF10Z/J
Diameter/Pitch: M8-1.25
Grade: Class 10.9
Length Under Head: 25MM
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 12MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.65/pc

Popular

50

$0.48/pc

100

$0.41/pc

250

$0.33/pc

Best Value

1100

$0.24/pc

$0.65

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M8-1.25
Finish	Zinc Clear
Width Across Flats	13 mm
Major Diameter	8 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	36.6 sq mm
Torque Dry	36 Nm (27 ft-lb)
Thread Length	Fully threaded

Length Under Head	25 mm
Partial Full Threads	Full
Width Across Corners	15.0 mm max
Proof Load	30.4 kN (6,831 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	27 Nm (20 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Thread Class	6g
Head Height	5.3 mm nom
Clamp Load	22.8 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Head Type	Hex Flange (Frame Bolt)
Diameter Pitch 1	M8-1.25
