Product Description
Part Number: M8CSWNSPPL/ST
Diameter/Pitch: M8-1.25
Material: Low Carbon Steel
Pilot Height: 1.9MM
Width: 15.7MM
Length: 24.6MM
Projection Height: 0.063MM
Projection Width: 7.8MM
Thickness : 3.5MM
Coarse / Fine Threads: Coarse
Finish: Plain
BoltsandNuts.com

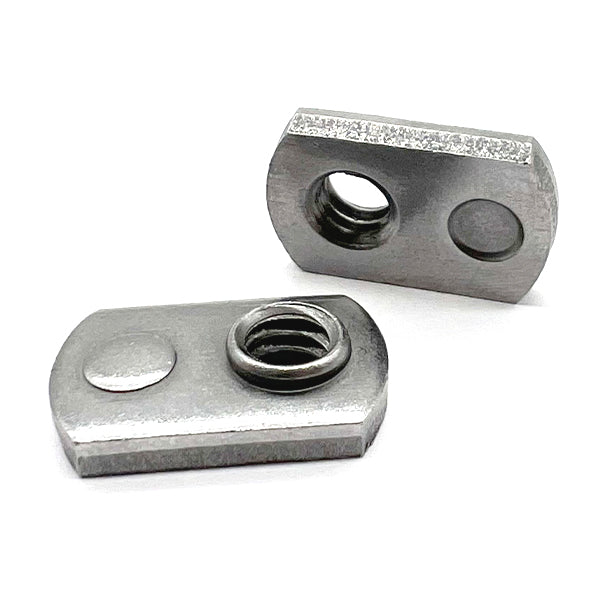

M8-1.25 Single Tab Single Prong Spot Weld Nuts
Product Description
Part Number: M8CSWNSPPL/ST
Diameter/Pitch: M8-1.25
Material: Low Carbon Steel
Pilot Height: 1.9MM
Width: 15.7MM
Length: 24.6MM
Projection Height: 0.063MM
Projection Width: 7.8MM
Thickness : 3.5MM
Coarse / Fine Threads: Coarse
Finish: Plain
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.86/pc
Popular
100
$0.64/pc
200
$0.55/pc
500
$0.44/pc
Best Value
1500
$0.33/pc
$0.86
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M8-1.25 |
| Material | Low carbon steel |
| Number Of Projections | 1 |
| Width | 15.7MM |
| Projection Width | 7.8MM |
| Grade | Low Carbon Steel |
| Thread Class | 6H |
| Thread Size | M8-1.25 |
| Inch Metric | Metric |
| Projection Height | 0.063MM |
| Grade Material | Low Carbon Steel |
| Tensile Stress Area | 36.6 sq mm |
| Head Type | Single Tab Spot |
| Used For | Resistance (spot) welding to sheet metal |
| Pilot Height | 1.9MM |
