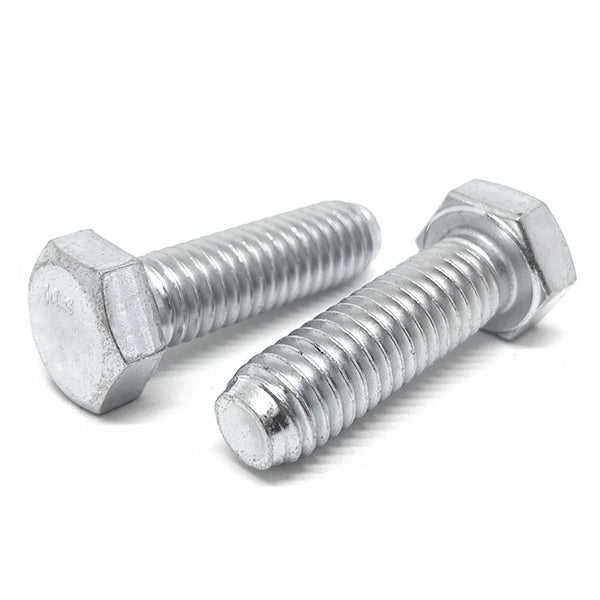

M8-1.00x20 Class 10.9 Hex Cap Screws Fine Thread Zinc Clear

Product Description

Part Number: M8F20HCS10Z
Diameter/Pitch: M8-1.0
Grade: Class 10.9
Length Under Head: 20MM
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 13MM
Click Here for Tech Drawing

BoltsandNuts.com

M8-1.00x20 Class 10.9 Hex Cap Screws Fine Thread Zinc Clear

SKU: M8F20HCS10Z

Product Description

Part Number: M8F20HCS10Z
Diameter/Pitch: M8-1.0
Grade: Class 10.9
Length Under Head: 20MM
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Wrench Size: 13MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.91/pc

Popular

75

$0.68/pc

150

$0.58/pc

375

$0.46/pc

Best Value

1500

$0.34/pc

$0.91

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M8-1
Grade Material	Class 10.9
Thread Class	6g
Head Height	5.3 mm nom
Clamp Load	24.4 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Thread Length	Fully threaded

Length Under Head	20 mm
Finish	Zinc Clear
Width Across Flats	13 mm
Major Diameter	8 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	39.2 sq mm
Torque Dry	39 Nm (29 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Partial Full Threads	Full
Width Across Corners	15.0 mm max
Proof Load	32.5 kN (7,308 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	29 Nm (22 ft-lb)
