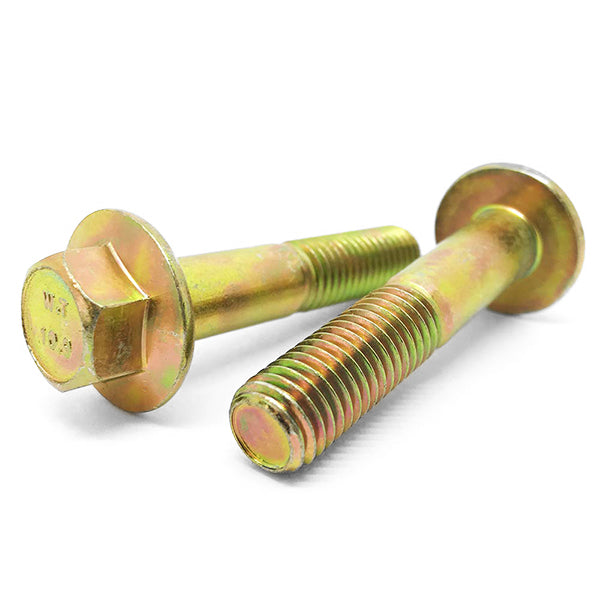

M6-1.0x60 Class 10.9 Hex Flange Bolts Zinc Yellow

Product Description

Part Number: M6C60BF10Y/D
Diameter/Pitch: M6-1.0
Grade: Class 10.9
Length Under Head: 60MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 10MM
Click Here for Tech Drawing

BoltsandNuts.com

M6-1.0x60 Class 10.9 Hex Flange Bolts Zinc Yellow

SKU: M6C60BF10Y/D

Product Description

Part Number: M6C60BF10Y/D
Diameter/Pitch: M6-1.0
Grade: Class 10.9
Length Under Head: 60MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 10MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.70/pc

Popular

40

$0.52/pc

80

$0.44/pc

200

$0.35/pc

Best Value

1100

$0.26/pc

$0.70

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M6-1
Grade Material	Class 10.9
Thread Class	6g
Head Height	4 mm nom
Clamp Load	12.5 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	60 mm
Finish	Zinc Yellow
Width Across Flats	10 mm
Major Diameter	6 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	20.1 sq mm
Torque Dry	15 Nm (11 ft-lb)
Thread Length	Fully threaded

Grade	Class 10.9
Partial Full Threads	Partial
Width Across Corners	11.5 mm max
Proof Load	16.7 kN (3,755 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	11 Nm (8 ft-lb)
Inch Metric	Metric
