Product Description
Part Number: M6C20BCG46Z
Diameter/Pitch: M6-1.0
Length Under Head: 20MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 6.48 MM
BoltsandNuts.com

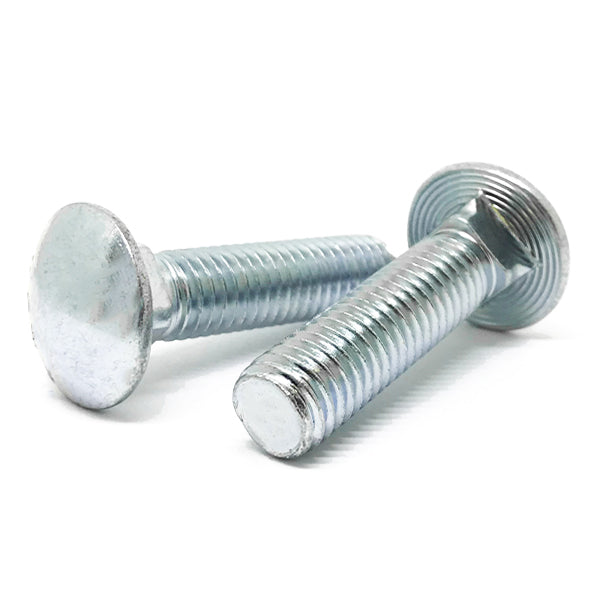

M6-1.0x20 Class 4.6 Round Head Carriage Bolts Zinc
Product Description
Part Number: M6C20BCG46Z
Diameter/Pitch: M6-1.0
Length Under Head: 20MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 6.48 MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.33/pc
Popular
50
$0.24/pc
100
$0.21/pc
250
$0.16/pc
Best Value
1250
$0.12/pc
$0.33
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M6-1 |
| Grade Material | Class 4.6 |
| Partial Full Threads | Full |
| Proof Load | 4.5 kN |
| Proof Stress | 225 MPa |
| Head Type | Round Head, Square Neck |
| Length Under Head | 20 mm |
| Finish | Zinc Clear |
| Thread Class | 6g |
| Tensile Strength | 400 MPa (58,015 psi) |
| Tensile Stress Area | 20.1 sq mm |
| Inch Metric | Metric |
| Grade | Class 4.6 |
| Material | Low carbon steel |
| Major Diameter | 6 mm |
| Yield Strength | 240 MPa |
| Head Marking | "4.6" marking |
