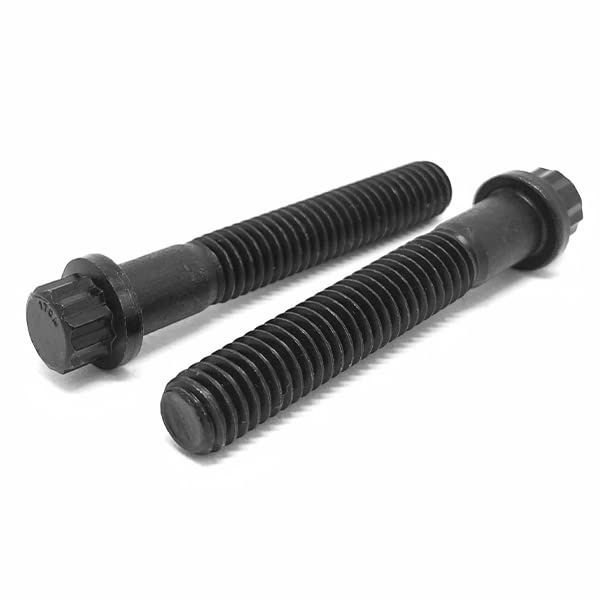

M6-1.00x45 Metric 12 Point Flange Screws Class 12.9 Black Oxide

Product Description

Part Number: M6C45BFL12PL
Diameter/Pitch: M6-1.0
Grade: Class 12.9 Alloy
Length Under Head: 45MM
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 6MM

BoltsandNuts.com

M6-1.00x45 Metric 12 Point Flange Screws Class 12.9 Black Oxide

SKU: M6C45BFL12PL

Product Description

Part Number: M6C45BFL12PL
Diameter/Pitch: M6-1.0
Grade: Class 12.9 Alloy
Length Under Head: 45MM
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 6MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.86/pc

Popular

50

$1.39/pc

100

$1.18/pc

250

$0.94/pc

Best Value

1450

$0.71/pc

$1.86

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M6-1
Grade Material	Class 12.9 Alloy
Thread Class	6g
Head Height	4 mm nom
Clamp Load	14.6 kN
Proof Stress	970 MPa
Head Marking	"12.9" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	45 mm
Finish	Black Oxide
Width Across Flats	10 mm
Major Diameter	6 mm
Tensile Strength	1,220 MPa (176,946 psi)
Tensile Stress Area	20.1 sq mm
Torque Dry	18 Nm (13 ft-lb)
Thread Length	Fully threaded

Grade	Class 12.9
Partial Full Threads	Partial
Width Across Corners	11.5 mm max
Proof Load	19.5 kN (4,388 lbf)
Yield Strength	1,100 MPa
Hardness	39–44 HRC
Torque Lubricated	13 Nm (10 ft-lb)
Inch Metric	Metric
