Product Description
Part Number: M5C20SHCS12BO/D
Diameter/Pitch: M5-0.8
Length Under Head: 20MM
Grade: Class 12.9 Alloy
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Hex Key Size: 4MM
BoltsandNuts.com

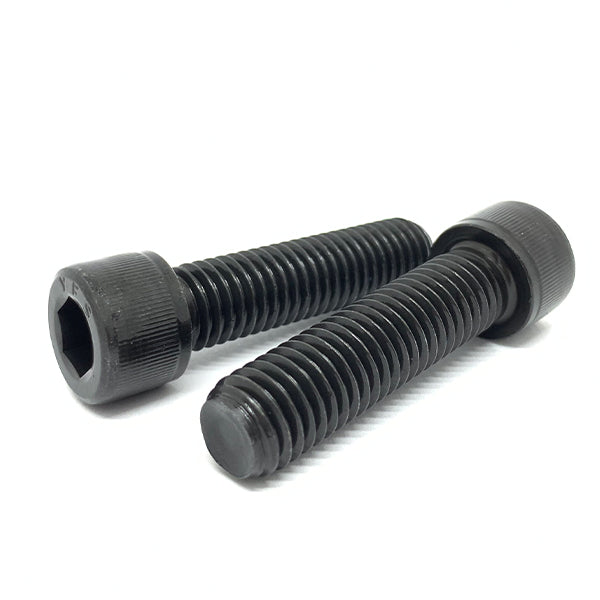

M5-0.8x20 Class 12.9 Alloy Socket Head Cap Screws Black Oxide
Product Description
Part Number: M5C20SHCS12BO/D
Diameter/Pitch: M5-0.8
Length Under Head: 20MM
Grade: Class 12.9 Alloy
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Hex Key Size: 4MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.20/pc
Popular
100
$0.14/pc
200
$0.12/pc
500
$0.10/pc
Best Value
2500
$0.07/pc
$0.20
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M5-0.8 |
| Grade Material | Class 12.9 Alloy |
| Partial Full Threads | Full |
| Major Diameter | 5 mm |
| Yield Strength | 1,100 MPa |
| Hardness | 39–44 HRC |
| Head Type | Socket Head Cap |
| Length Under Head | 20 mm |
| Finish | Black Oxide |
| Thread Class | 6g |
| Hex Key Size | 4 mm |
| Proof Stress | 970 MPa |
| Head Marking | "12.9" on head |
| Head Diameter | 8.5 mm nom |
| Grade | Class 12.9 |
| Material | Alloy steel, heat treated |
| Head Height | 5 mm nom |
| Tensile Strength | 1,220 MPa (176,946 psi) |
| Tensile Stress Area | 14.2 sq mm |
| Drive | Hex Socket |
| Inch Metric | Metric |
