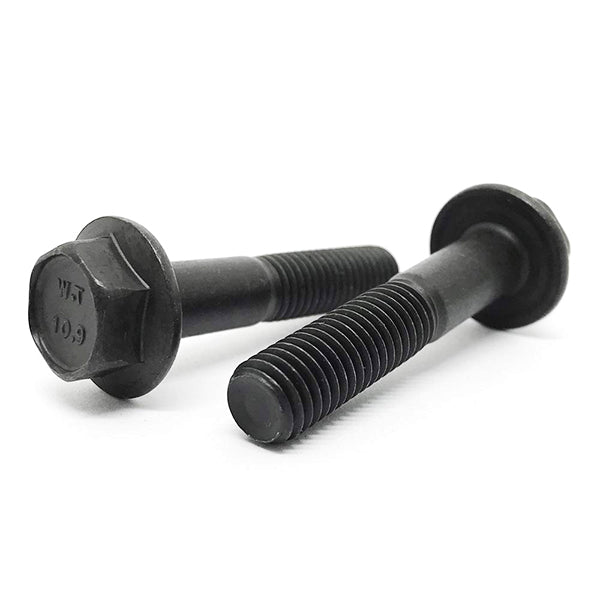

M16-2.0x80 Class 10.9 Hex Flange Bolts Phos & Oil

Product Description

Part Number: M16C80BF10P/D
Diameter/Pitch: M16-2.0
Grade: Class 10.9
Length Under Head: 80MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 21MM
Click Here for Tech Drawing

BoltsandNuts.com

M16-2.0x80 Class 10.9 Hex Flange Bolts Phos & Oil

SKU: M16C80BF10P/D

Product Description

Part Number: M16C80BF10P/D
Diameter/Pitch: M16-2.0
Grade: Class 10.9
Length Under Head: 80MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 21MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$7.11/pc

Popular

4

$5.33/pc

8

$4.53/pc

20

$3.62/pc

Best Value

110

$2.72/pc

$7.11

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M16-2
Grade Material	Class 10.9
Thread Class	6g
Head Height	10 mm nom
Clamp Load	97.5 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	80 mm
Finish	Phosphate & Oil
Width Across Flats	24 mm
Major Diameter	16 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	156.7 sq mm
Torque Dry	312 Nm (230 ft-lb)
Thread Length	Fully threaded

Grade	Class 10.9
Partial Full Threads	Partial
Width Across Corners	27.7 mm max
Proof Load	130.0 kN (29,233 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	234 Nm (173 ft-lb)
Inch Metric	Metric
