Product Description
Part Number: M16C60BCG46Z
Diameter/Pitch: M16-2.0
Length Under Head: 50MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 16.70 MM
BoltsandNuts.com

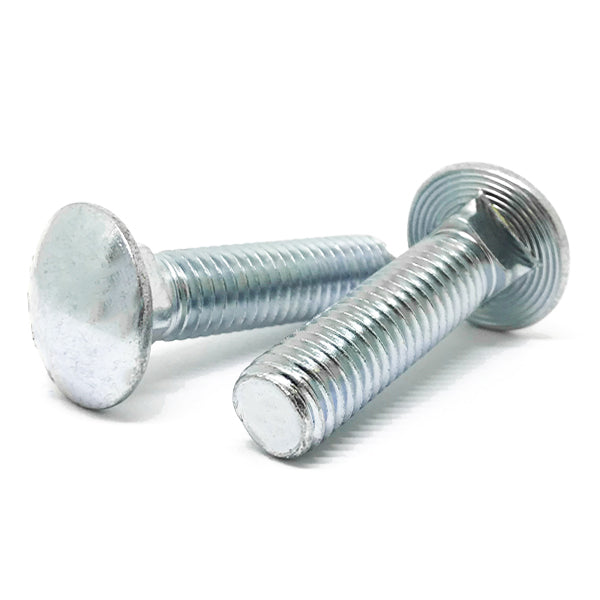

M16-2.0x60 Class 4.6 Round Head Carriage Bolts Zinc
Product Description
Part Number: M16C60BCG46Z
Diameter/Pitch: M16-2.0
Length Under Head: 50MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 16.70 MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$5.63/pc
Popular
4
$4.22/pc
8
$3.58/pc
20
$2.87/pc
Best Value
100
$2.15/pc
$5.63
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M16-2 |
| Grade Material | Class 4.6 |
| Partial Full Threads | Full |
| Proof Load | 35.3 kN |
| Proof Stress | 225 MPa |
| Head Type | Round Head, Square Neck |
| Length Under Head | 60 mm |
| Finish | Zinc Clear |
| Thread Class | 6g |
| Tensile Strength | 400 MPa (58,015 psi) |
| Tensile Stress Area | 156.7 sq mm |
| Inch Metric | Metric |
| Grade | Class 4.6 |
| Material | Low carbon steel |
| Major Diameter | 16 mm |
| Yield Strength | 240 MPa |
| Head Marking | "4.6" marking |
