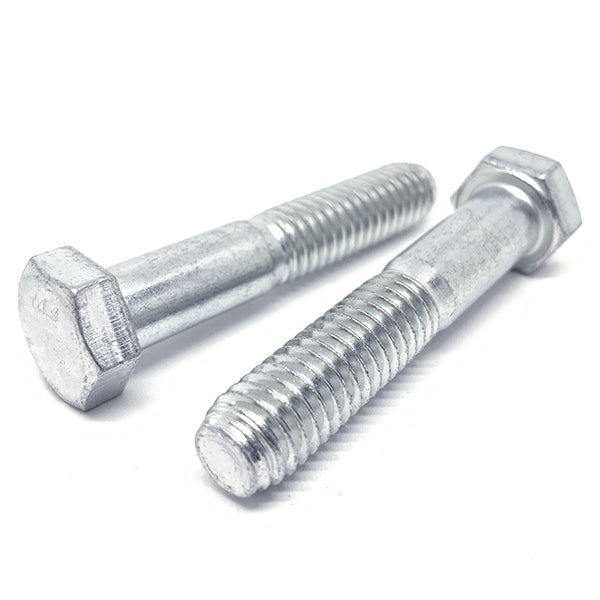

M16-2.0x50 Class 10.9 Hex Cap Screws Zinc Clear

Product Description

Part Number: M16C50HCS10Z
Diameter/Pitch: M16-2.0
Grade: Class 10.9
Length Under Head: 50MM
Finish: Zinc Clear
Thread Series: Metric coarse
Threading: Partially threaded
Wrench Size: 24MM

BoltsandNuts.com

M16-2.0x50 Class 10.9 Hex Cap Screws Zinc Clear

SKU: M16C50HCS10Z

Product Description

Part Number: M16C50HCS10Z
Diameter/Pitch: M16-2.0
Grade: Class 10.9
Length Under Head: 50MM
Finish: Zinc Clear
Thread Series: Metric coarse
Threading: Partially threaded
Wrench Size: 24MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$3.10/pc

Popular

5

$2.33/pc

10

$1.98/pc

25

$1.58/pc

Best Value

150

$1.19/pc

$3.10

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	M16-2
Material	Medium carbon alloy steel, quenched and tempered
Thread Series	Metric coarse
Head Height	10 mm nom
Tensile Strength (min)	1,040 MPa (150,840 psi)
Specifications Met	ISO 4014 / DIN 931, ISO 898-1 Class 10.9

Length	50 mm
Finish	Zinc Clear
Threading	Partially threaded
Head Marking	"10.9" on head
Proof Load (min)	130.0 kN (29,233 lbf)

Grade	Class 10.9
Wrench Size	24MM
Thread Length	38 mm ref
Thread Class	6g
Hardness	32–39 HRC

Technical Drawing

Not to scale · ISO 4014 / DIN 931 · See table for exact dimensions

Technical Dimensions

Length Under Head	50 mm
Major Thread Dia.	16 mm
Head Height	10 mm nom
Width Across Flats	24 mm
Width Across Corners	27.7 mm max
Thread Length	38 mm ref
Thread Class	6g
Proof Load	130.0 kN (29,233 lbf)
Clamp Load	97.5 kN
Min. Tensile Strength	1,040 MPa (150,840 psi)
Yield Strength	940 MPa
Hardness	32–39 HRC

Hex cap screw with a hexagonal head for external wrench engagement and a chamfered point for easier starting. The flat bearing surface distributes clamp load across the joint. Partially threaded shank, plain under the head, with ISO metric coarse threads.

Dimensions conform to ISO 4014 / DIN 931 and may vary within specified manufacturing tolerances.
