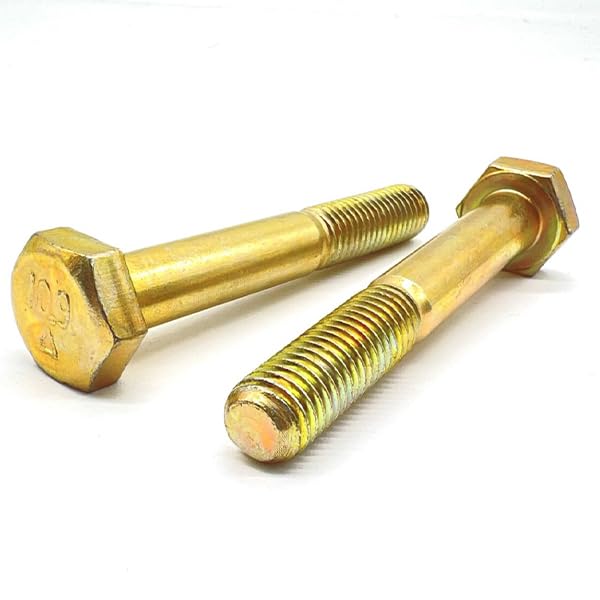

M16-2.00x80 Class 10.9 Hex Cap Screws Zinc Yellow

Product Description

Part Number: M16C80HCS10Y
Diameter/Pitch: M16-2.0
Grade: Class 10.9
Length Under Head: 80MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 24MM
Click Here for Tech Drawing

BoltsandNuts.com

M16-2.00x80 Class 10.9 Hex Cap Screws Zinc Yellow

SKU: M16C80HCS10Y

Product Description

Part Number: M16C80HCS10Y
Diameter/Pitch: M16-2.0
Grade: Class 10.9
Length Under Head: 80MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 24MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$6.69/pc

Popular

3

$5.01/pc

6

$4.26/pc

15

$3.40/pc

Best Value

110

$2.55/pc

$6.69

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M16-2
Grade Material	Class 10.9
Thread Class	6g
Head Height	10 mm nom
Clamp Load	97.5 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Thread Length	38 mm ref

Length Under Head	80 mm
Finish	Zinc Yellow
Width Across Flats	24 mm
Major Diameter	16 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	156.7 sq mm
Torque Dry	312 Nm (230 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Partial Full Threads	Partial
Width Across Corners	27.7 mm max
Proof Load	130.0 kN (29,233 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	234 Nm (173 ft-lb)
