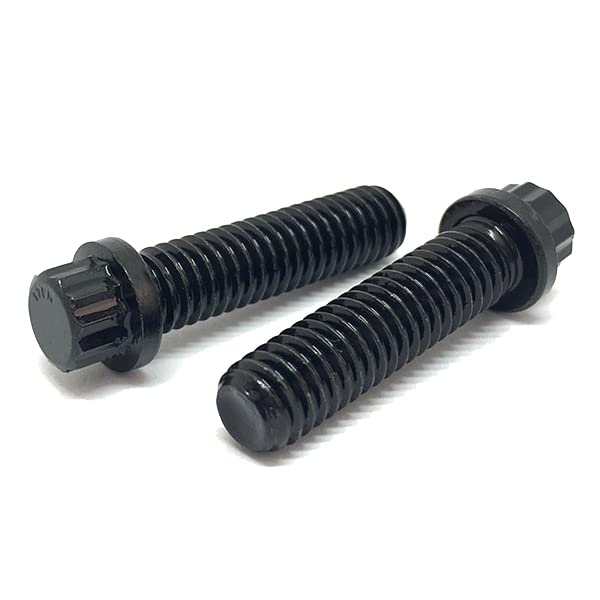

M16-2.00x40 Metric 12 Point Flange Screws Class 12.9 Black Oxide

Product Description

Part Number: M16C40BFL12PL
Diameter/Pitch: M16-2.0
Grade: Class 12.9 Alloy
Length Under Head: 40MM
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 16MM

BoltsandNuts.com

M16-2.00x40 Metric 12 Point Flange Screws Class 12.9 Black Oxide

SKU: M16C40BFL12PL

Product Description

Part Number: M16C40BFL12PL
Diameter/Pitch: M16-2.0
Grade: Class 12.9 Alloy
Length Under Head: 40MM
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 16MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$10.26/pc

Popular

6

$7.69/pc

12

$6.53/pc

30

$5.23/pc

Best Value

185

$3.92/pc

$10.26

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M16-2
Grade Material	Class 12.9 Alloy
Thread Class	6g
Head Height	10 mm nom
Clamp Load	114.0 kN
Proof Stress	970 MPa
Head Marking	"12.9" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	40 mm
Finish	Black Oxide
Width Across Flats	24 mm
Major Diameter	16 mm
Tensile Strength	1,220 MPa (176,946 psi)
Tensile Stress Area	156.7 sq mm
Torque Dry	365 Nm (269 ft-lb)
Thread Length	Fully threaded

Grade	Class 12.9
Partial Full Threads	Full
Width Across Corners	27.7 mm max
Proof Load	152.0 kN (34,164 lbf)
Yield Strength	1,100 MPa
Hardness	39–44 HRC
Torque Lubricated	274 Nm (202 ft-lb)
Inch Metric	Metric
