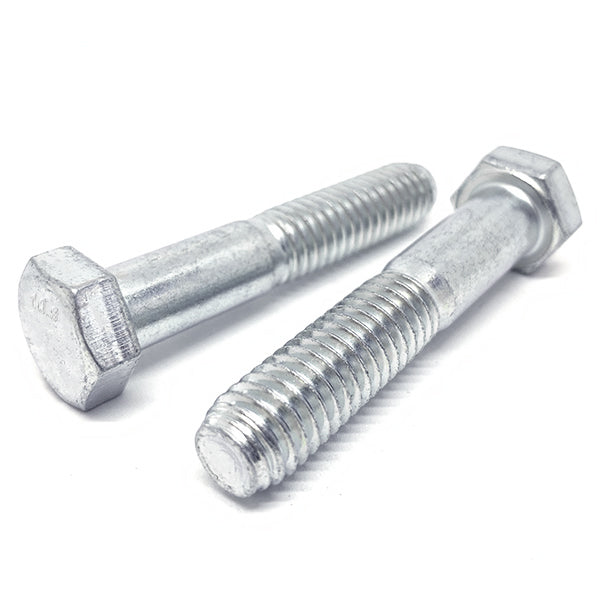

M16-1.50x85 Class 10.9 Fine Thread Hex Cap Screws Zinc Clear

Product Description

Part Number: M16F85HCS10Z
Diameter/Pitch: M16-1.5
Grade: Class 10.9
Length Under Head: 85MM
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Partial
Wrench Size: 24MM
Click Here for Tech Drawing

BoltsandNuts.com

M16-1.50x85 Class 10.9 Fine Thread Hex Cap Screws Zinc Clear

SKU: M16F85HCS10Z

Product Description

Part Number: M16F85HCS10Z
Diameter/Pitch: M16-1.5
Grade: Class 10.9
Length Under Head: 85MM
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Partial / Full Threads: Partial
Wrench Size: 24MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$7.99/pc

Popular

4

$5.99/pc

8

$5.09/pc

20

$4.07/pc

Best Value

100

$3.05/pc

$7.99

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M16-1.5
Grade Material	Class 10.9
Thread Class	6g
Head Height	10 mm nom
Clamp Load	104.1 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Thread Length	38 mm ref

Length Under Head	85 mm
Finish	Zinc Clear
Width Across Flats	24 mm
Major Diameter	16 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	167.2 sq mm
Torque Dry	333 Nm (246 ft-lb)
Inch Metric	Metric

Grade	Class 10.9
Partial Full Threads	Partial
Width Across Corners	27.7 mm max
Proof Load	138.8 kN (31,207 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	250 Nm (184 ft-lb)
