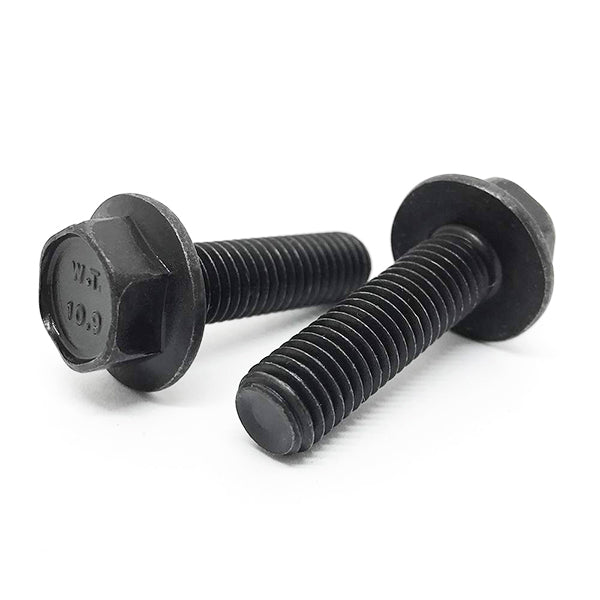

M14-2.0x35 Class 10.9 Hex Flange Bolts Phos & Oil

Product Description

Part Number: M14C35BF10P/D
Diameter/Pitch: M14-2.0
Grade: Class 10.9
Length Under Head: 35MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 18MM
Click Here for Tech Drawing

BoltsandNuts.com

M14-2.0x35 Class 10.9 Hex Flange Bolts Phos & Oil

SKU: M14C35BF10P/D

Product Description

Part Number: M14C35BF10P/D
Diameter/Pitch: M14-2.0
Grade: Class 10.9
Length Under Head: 35MM
Finish: Phosphate & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 18MM
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$2.97/pc

Popular

10

$2.22/pc

20

$1.89/pc

50

$1.51/pc

Best Value

250

$1.13/pc

$2.97

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M14-2
Grade Material	Class 10.9
Thread Class	6g
Head Height	8.8 mm nom
Clamp Load	71.9 kN
Proof Stress	830 MPa
Head Marking	"10.9" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	35 mm
Finish	Phosphate & Oil
Width Across Flats	21 mm
Major Diameter	14 mm
Tensile Strength	1,040 MPa (150,840 psi)
Tensile Stress Area	115.4 sq mm
Torque Dry	201 Nm (148 ft-lb)
Thread Length	Fully threaded

Grade	Class 10.9
Partial Full Threads	Full
Width Across Corners	24.2 mm max
Proof Load	95.8 kN (21,540 lbf)
Yield Strength	940 MPa
Hardness	32–39 HRC
Torque Lubricated	151 Nm (111 ft-lb)
Inch Metric	Metric
